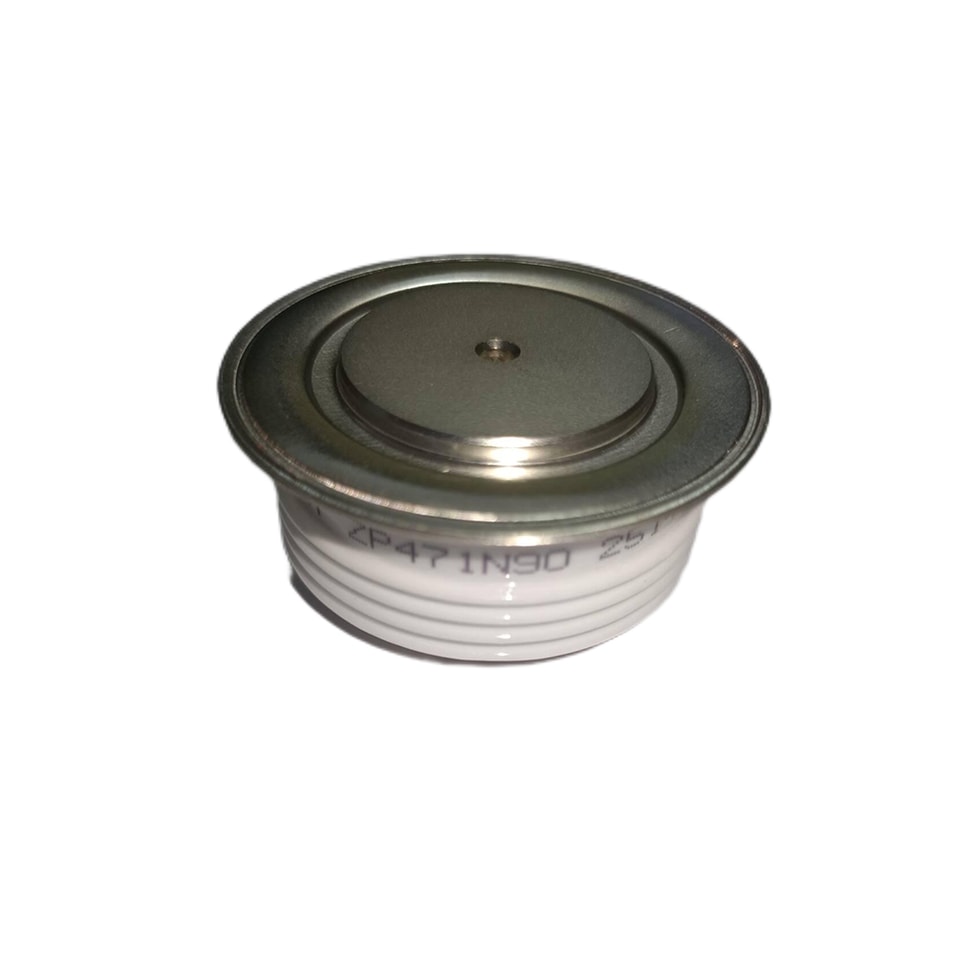

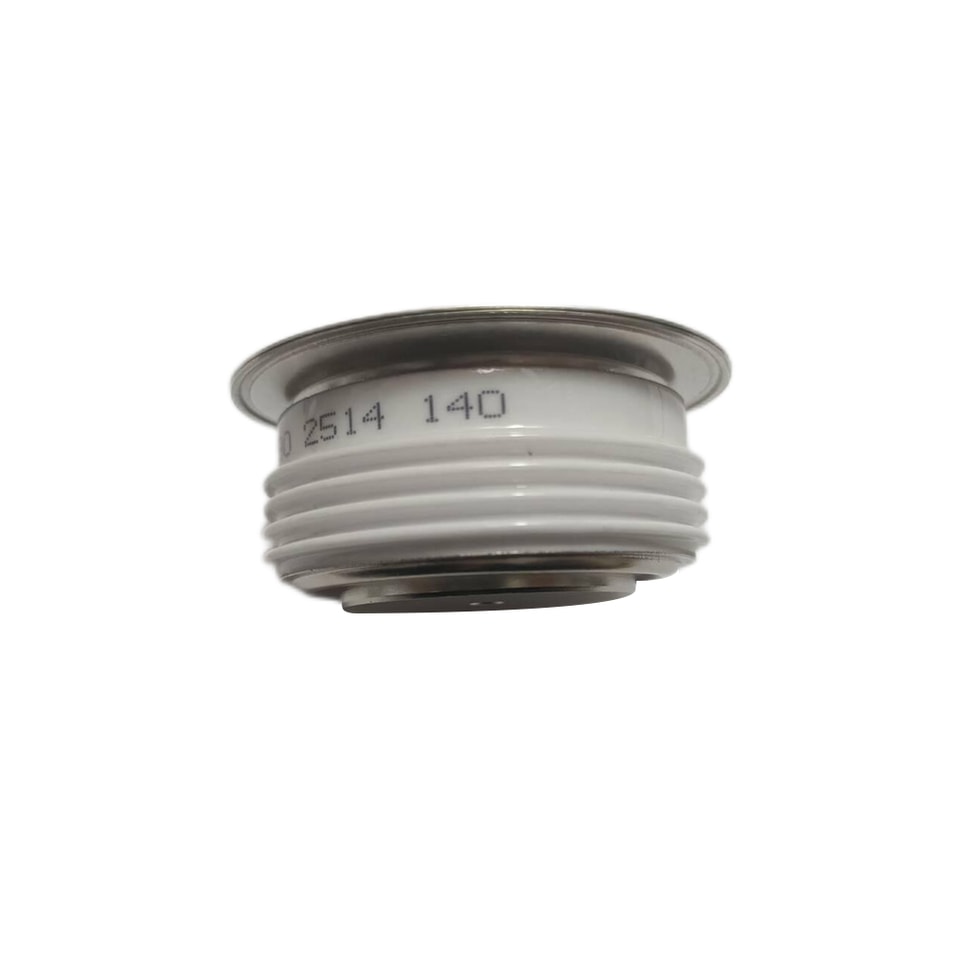

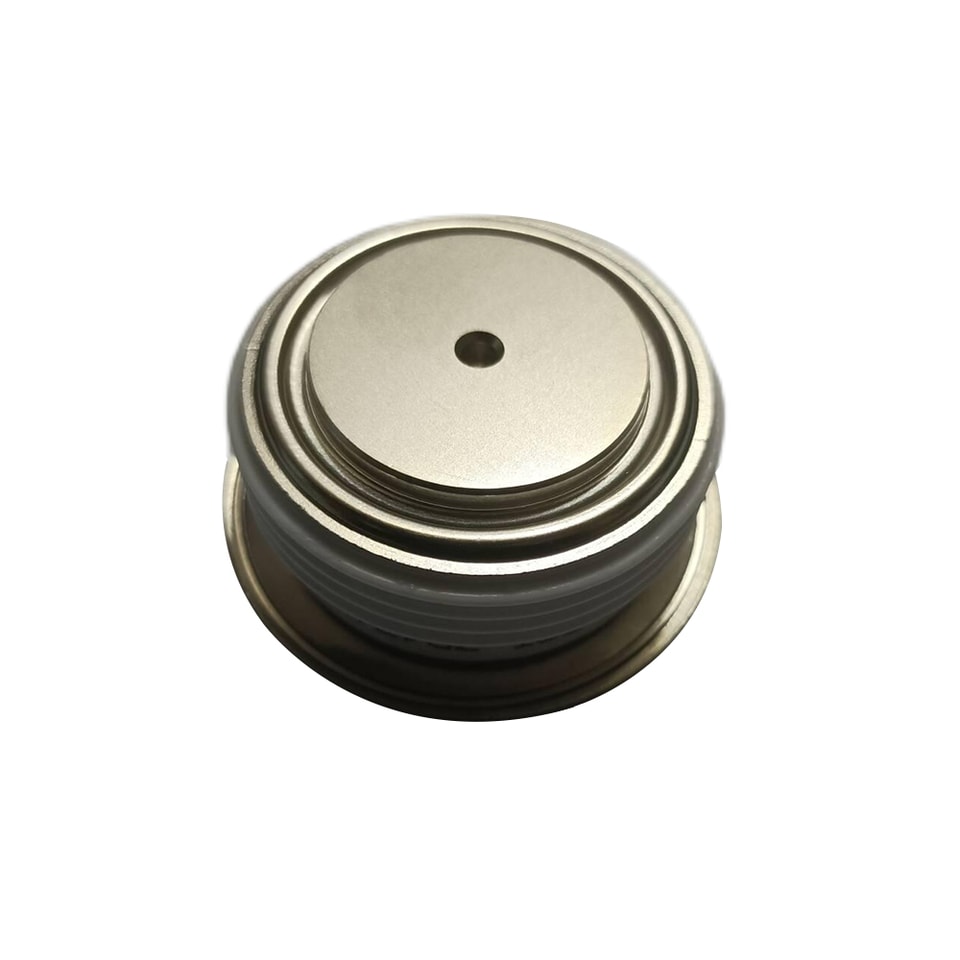

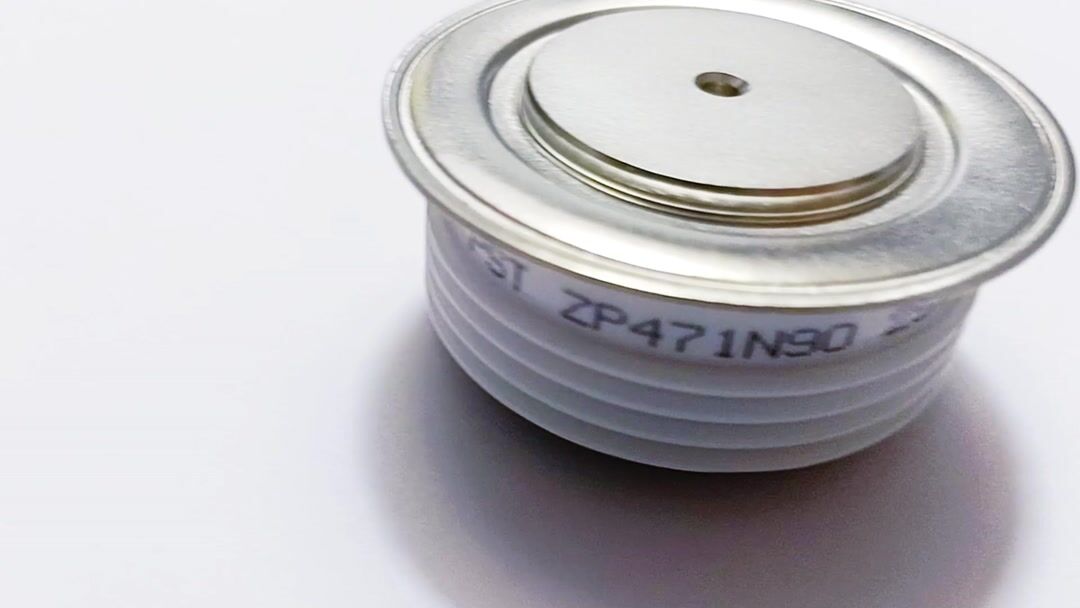

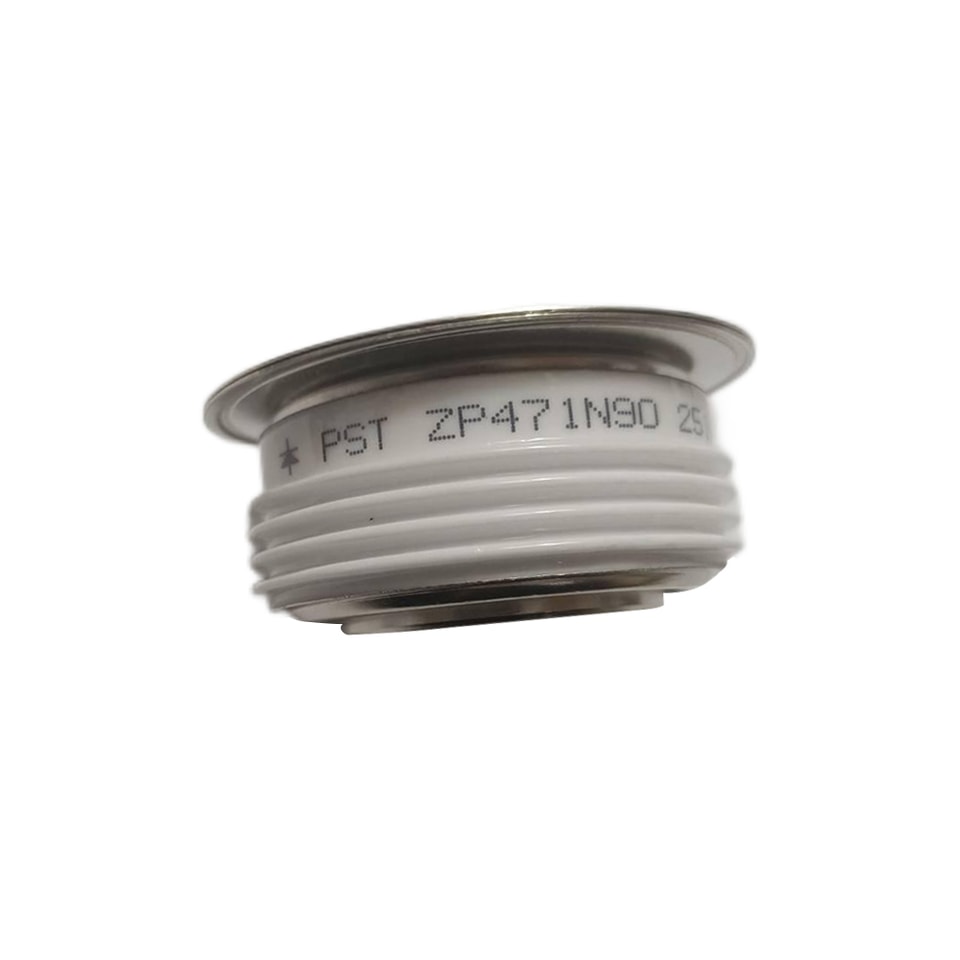

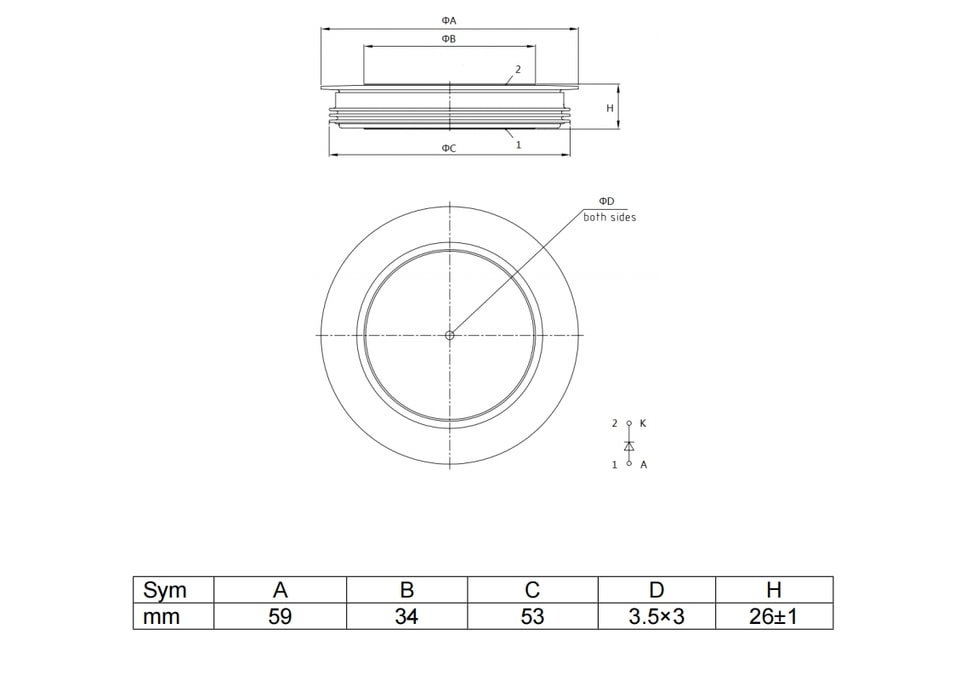

YZPST-D471N900

VRRM (1)

VRSM (1)

9000

9100

Repetitive peak reverse leakage

IRRM

10 mA 50mA

Parameter

Symbol

Min

Max.

Typ

Units

Conditions

Max. Average value of on-state current

IF(AV)M

550

A

Sinewave,180oconduction,Tc=100oC

RMS value of on-state current

IF(RMS)M

860

A

Nominal value Tc=100oC

Peak one cycle surge   (non repetitive) current

IFSM

11

kA

Tj=175°C, VR=0,8VRRM, tp=10ms

I square t

I2t

605

kA2s

10 msec

Peak on-state voltage

VF

3.20

V

IF = 1200 A; Tj =160 oC

threshold voltage

VF0

1.04

V

slope resistance

rT

1.80

mΩ

Reverse Recovery Current (4)

IRM(REC)

-

A

IFM = 1000 A; dIF/dt = 10 A/μs, Tj = 150 oC

Reverse Recovery Charge (4)

Qrr

-

-

μC

Reverse Recovery Time (4)

tRR

-

μs

Parameter

Symbol

Min.

Max.

Typ.

Units

Conditions

Operating temperature

Tj

-40

+160

oC

Storage temperature

Tstg

-40

+160

oC

Thermal resistance - junction to case

RΘ (j-c)

31.5

K/KW

Double side cooling

Thermal resistance - case to sink

RΘ (c-s)

6

K/K/W

Double side cooling

Thermal resistance - junction to sink

RΘ (j-s)

-

K/kW

Double side cooling

Mounting force

P

10

16

-

kN

Weight

W

250

g

about
