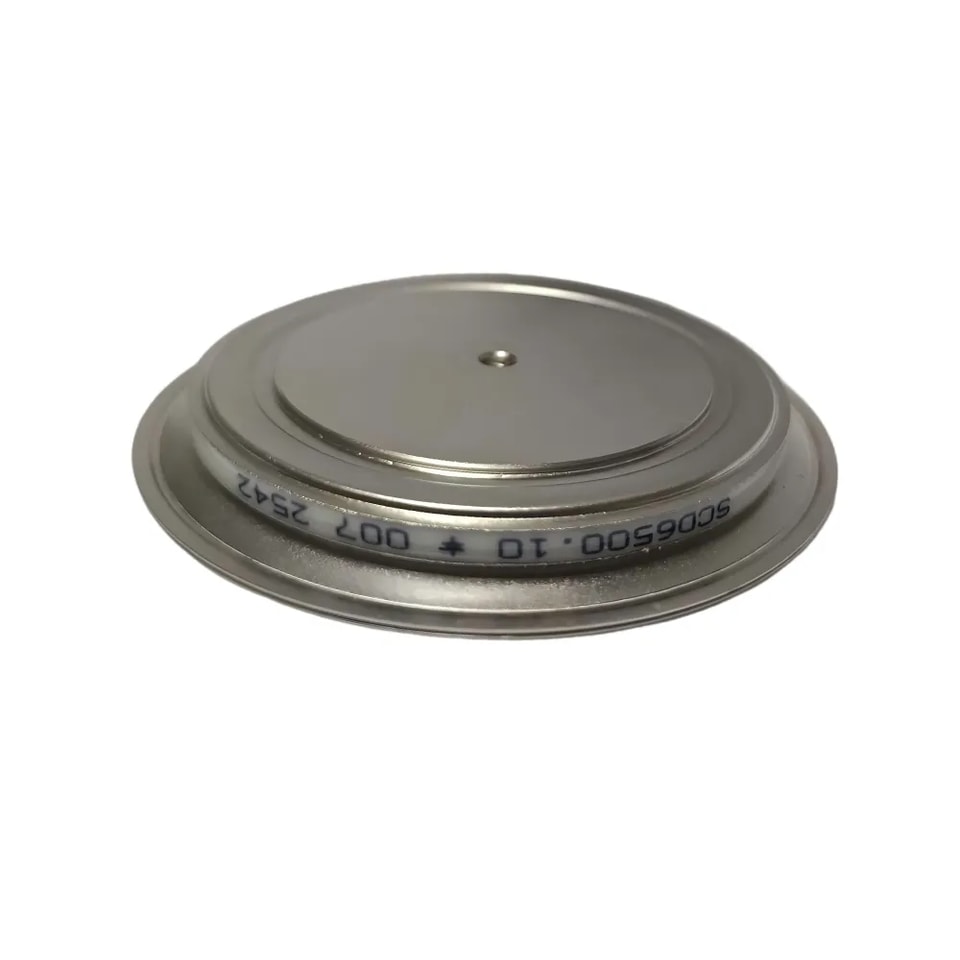

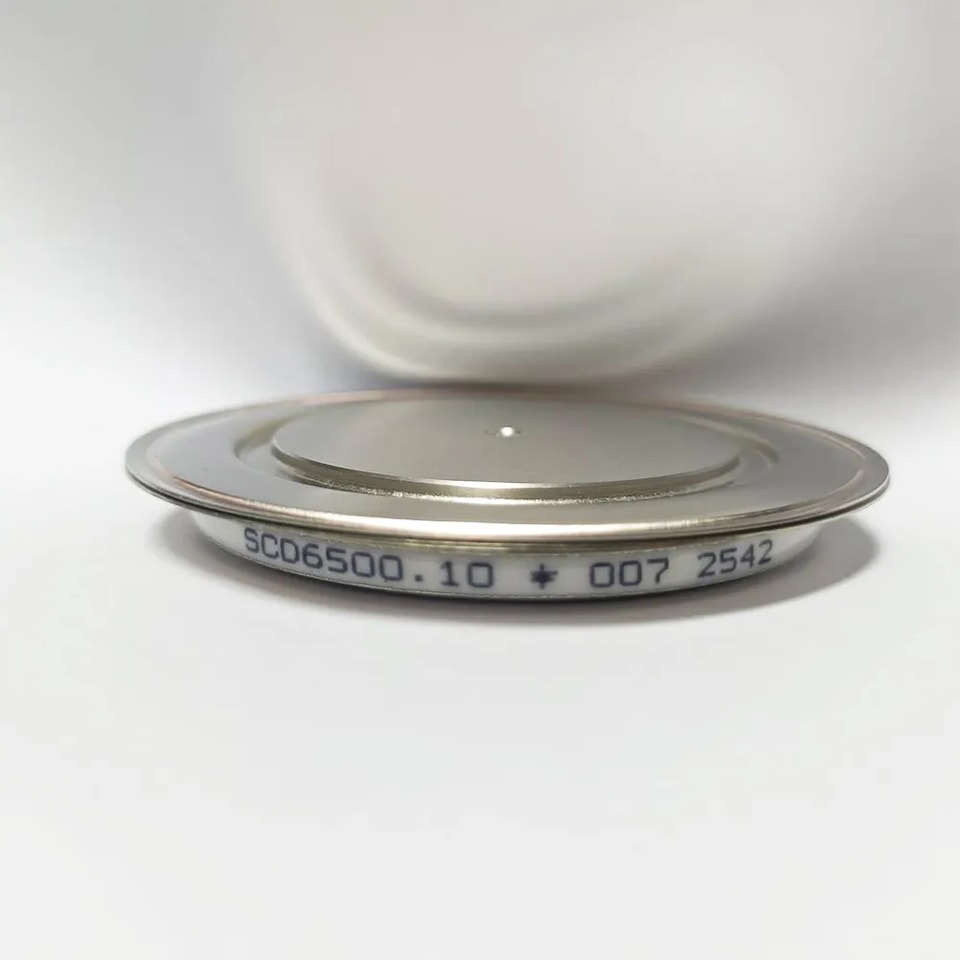

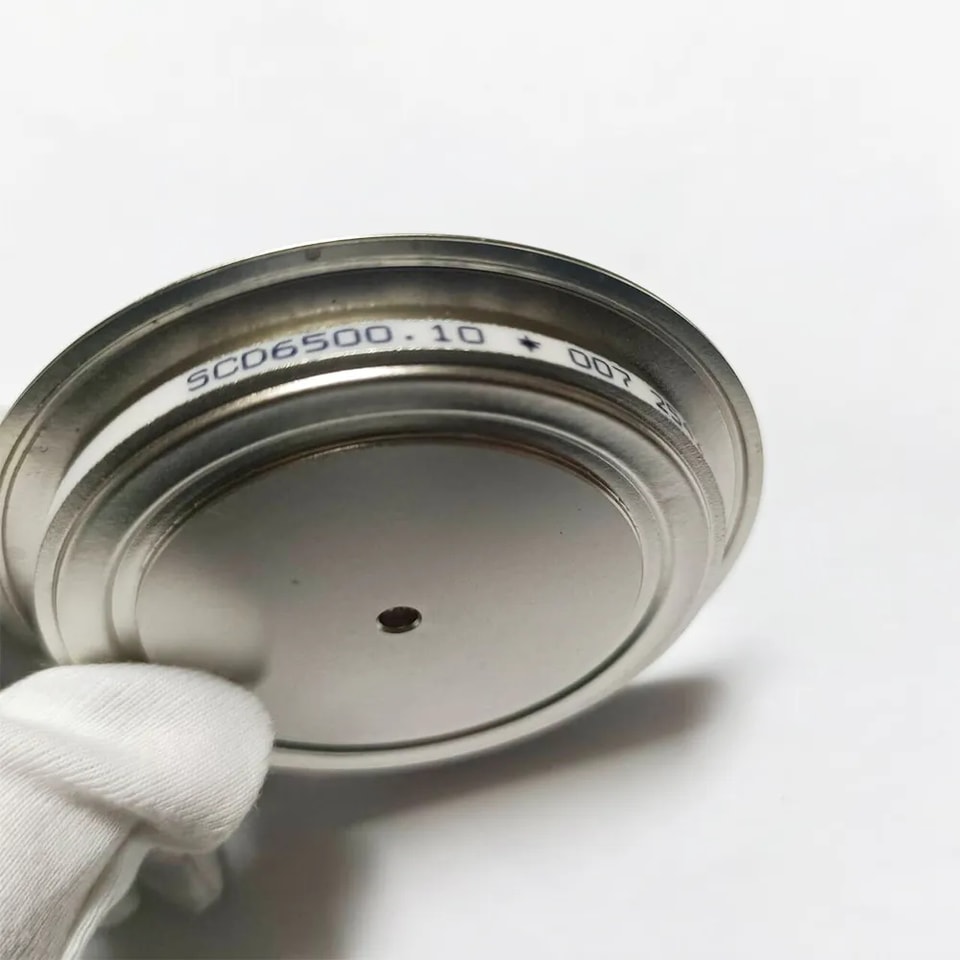

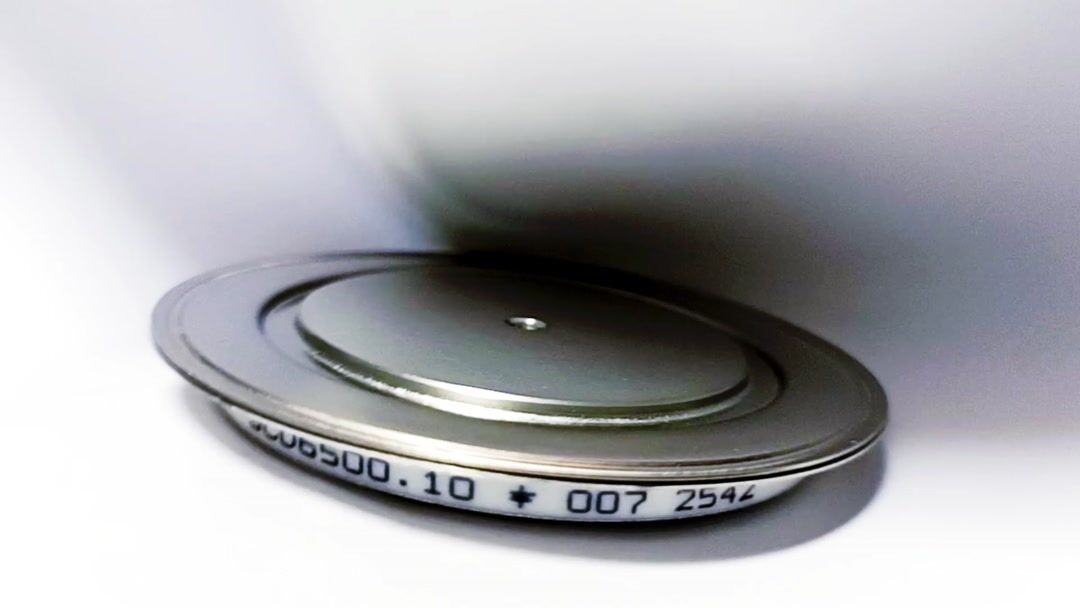

YZPST-AR3001LTS10
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
ELECTRICAL CHARACTERISTICS AND RATINGS
Reverse Blocking
| Device Type | VRRM (1) | VRSM (1) |
| AR3001LTS | 1000 | 1100 |
VRRM = Repetitive peak reverse voltage VRSM = Non repetitive peak reverse voltage (2)
Repetitive peak reverse leakage | IRRM | 75mA (3) |
Conducting - on state
Parameter | Symbol | Min. | Max. | Typ. | Units | Conditions |
Average value of on-state current | IF(AV) |
| 6460 |
| A | Sinewave,180o conduction,TC =85oC |
Peak one cycle surge (non repetitive) current | IFSM |
| 504000 |
| A | 10.0 msec (50Hz), sinusoidal wave- shape, 180o conduction, Tj = 190 oC |
I square t | I2t |
| 12700000 |
| A2s | 10.0 msec |
Peak on-state voltage | VFM |
| 1.20 |
| V | IFM = 4500 A; Duty cycle ≤ 0.01% Tj = 25 oC |
Reverse Recovery Current (4) | IRM(REC) |
| * |
| A | IFM = 1000 A; dIF/dt = 10 A/μs |
Reverse Recovery Charge (4) | Qrr |
| * |
| μC |
|
Reverse Recovery Time (4) | tRR |
| * |
| μs |
