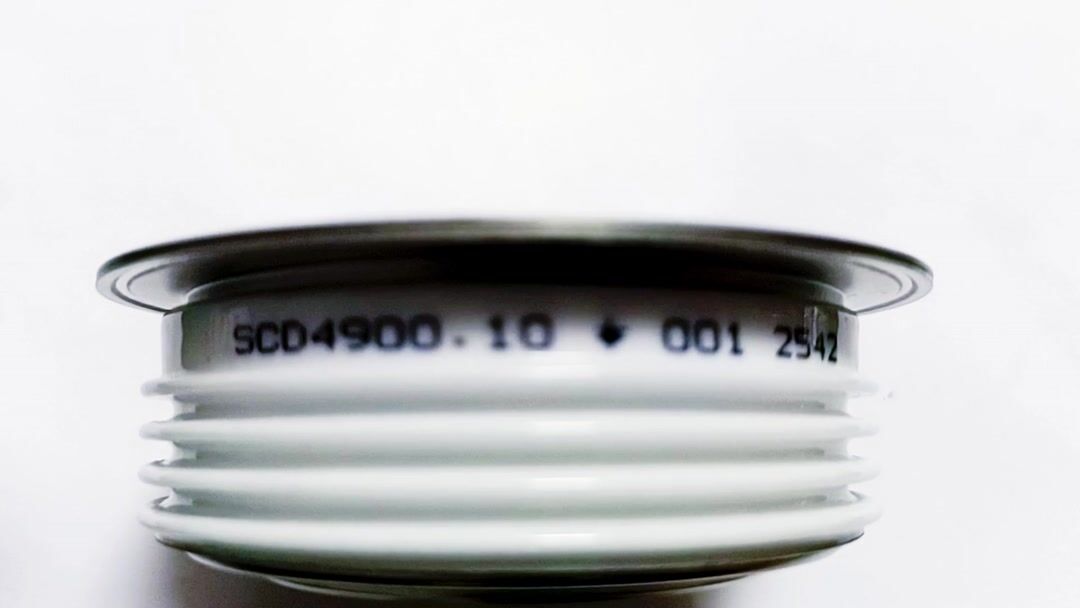

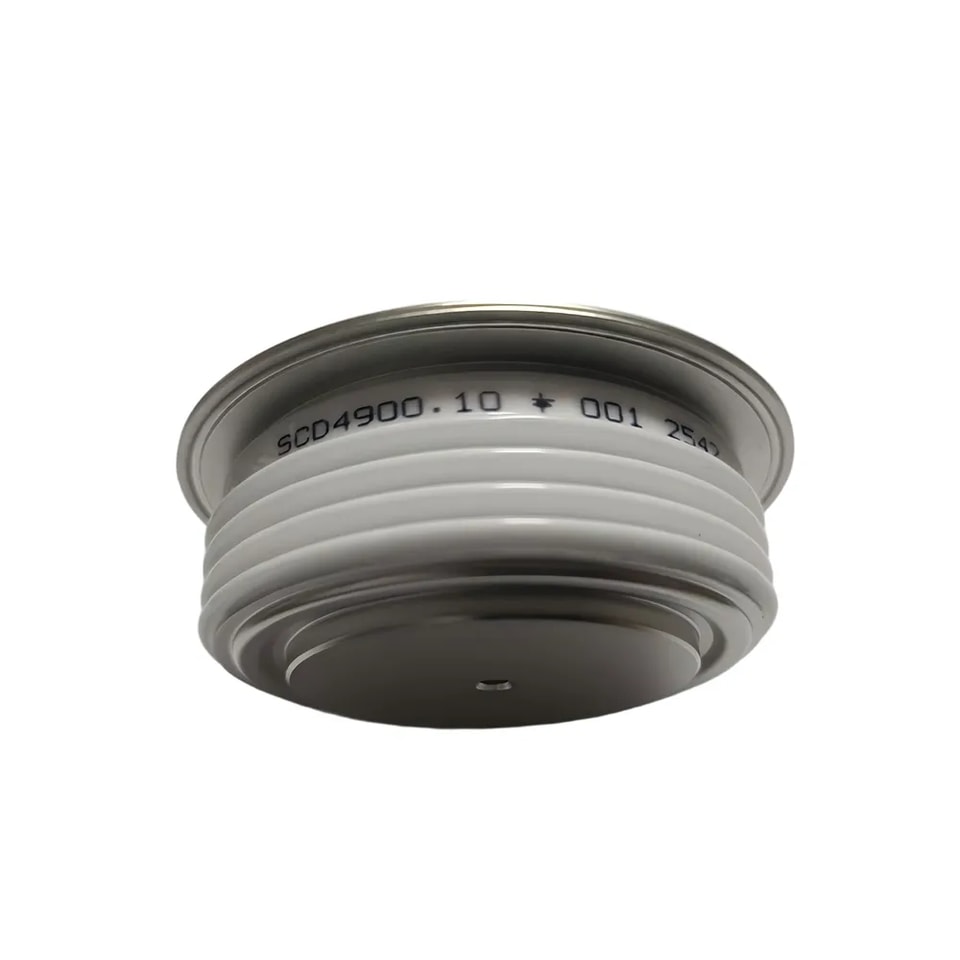

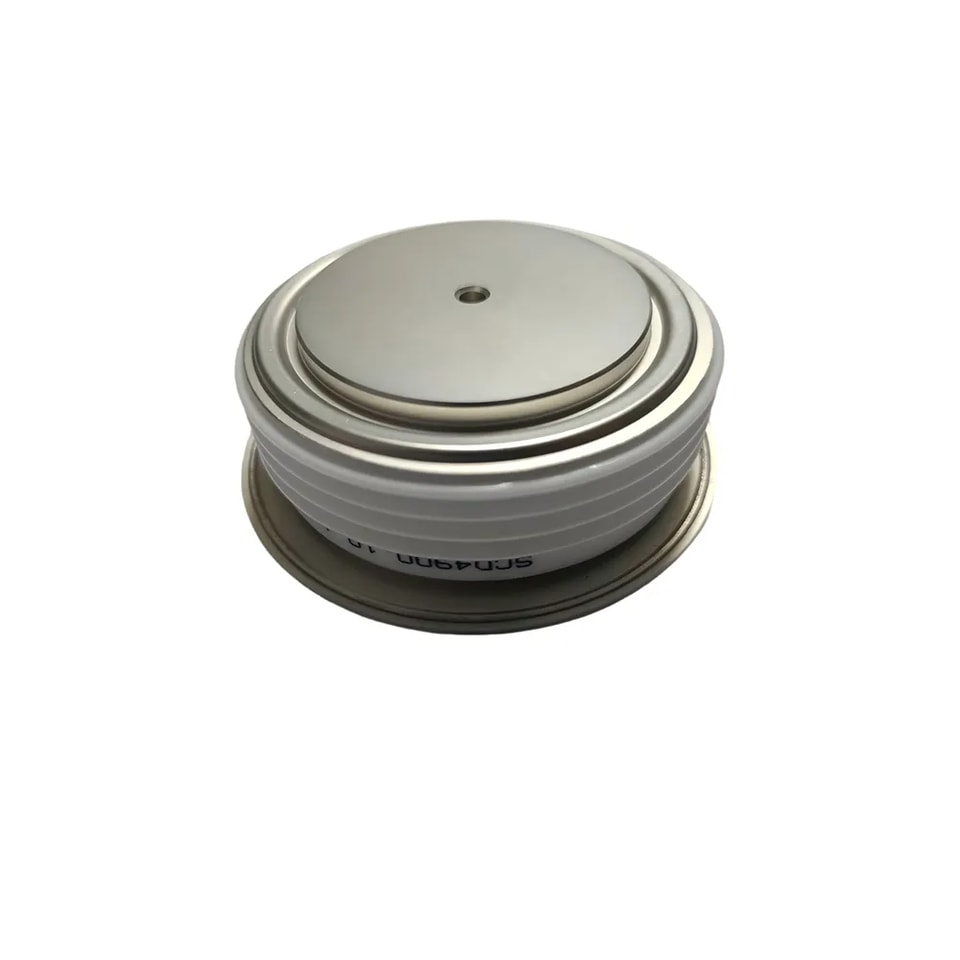

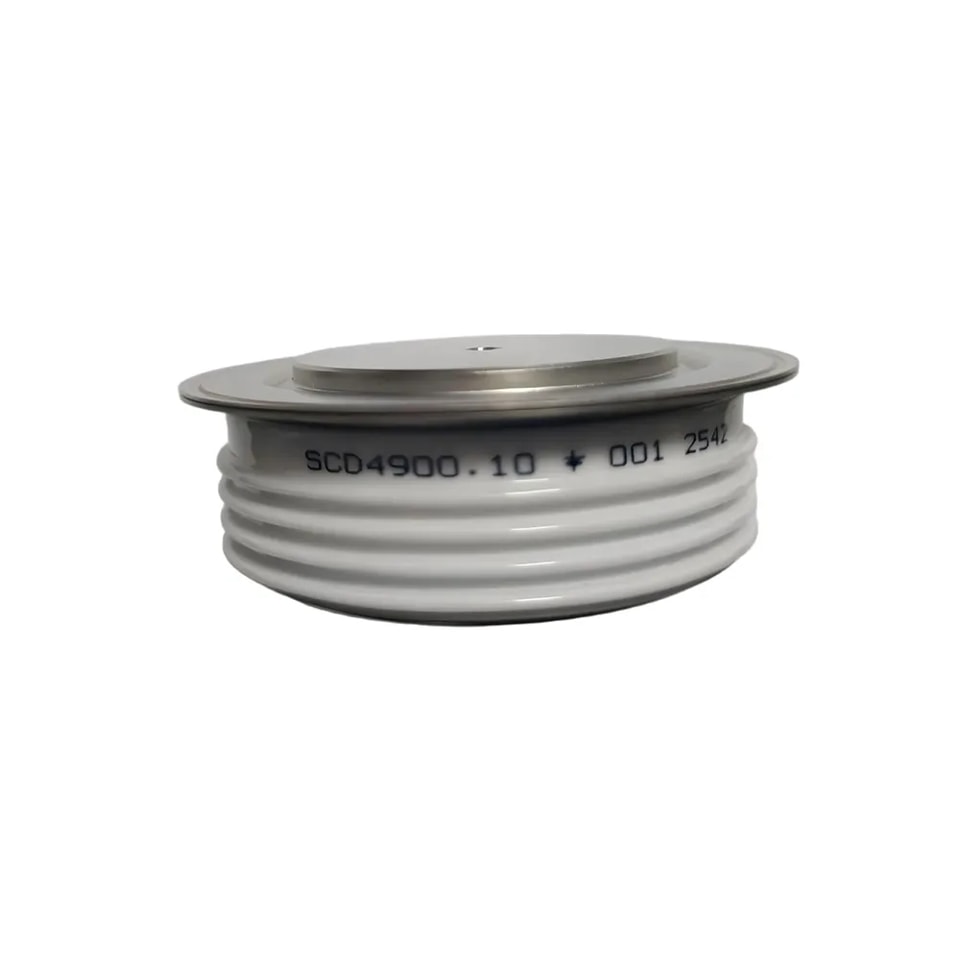

YZPST-AR3001S10
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
VRRM (1) | VRSM (1) |
1000 | 1100 |
VRRM = Repetitive peak reverse voltage
VRSM = Non repetitive peak reverse voltage (2)
Repetitive peak reverse leakage | IRRM | 7 mA 75 mA |
Conducting - on state
Parameter | Symbol | Min | Max. | Typ | Units | Conditions |
Max. Average value of on-state current | IF(AV)M |
| 4655 |
| A | Sinewave,180oconduction,Tc=55oC |
RMS value of on-state current | IF(RMS)M |
| - |
| A | Nominal value |
Peak one cycle surge (non repetitive) current | IFSM |
| 44.8 |
| kA | Tj=25°C, VR=0,8VRRM, tp=10ms |
I square t | I2t |
| 10×103 |
| kA2s | 10 msec |
Peak on-state voltage | VFM |
| 1.16 |
| V | IFM = 4500 A; Tj = 25oC |
Threshold voltage | VF0 |
| 0.75 |
| V | Tj = Tj Max |
Slope resistance | rf |
| 0.055 |
| mΩ | Tj = Tj Max |
Reverse Recovery Charge (4) | Qrr |
| - |
| μC |
|
Reverse Recovery Time (4) | tRR |
| - |
| μs |
For guaranteed maximum values, contact factory
THERMAL AND MECHANICAL CHARACTERISTICS
Parameter | Symbol | Min. | Max. | Typ. | Units | Conditions |
Operating temperature | Tj | -40 | +180 |
| oC |
|
Storage temperature | Tstg | -40 | +180 |
| oC |
|
Thermal resistance - junction to case | RΘ (j-c) |
| - - |
| oC/kW | Double side cooled Single sided cooled |
Thermal resistance - case to sink | RΘ (c-s) |
| 6 - |
| oC/kW | Double side cooled Single sided cooled |
Thermal resistance - junction to sink | RΘ (j-s) |
| 24 - |
| oC/kW | Double side cooled Single sided cooled |
Mounting force | P | 22 | 24.5 |
| kN |
|
Weight | W |
|
| - | Kg | about |
* Mounting surfaces smooth, flat and greased
CASE OUTLINE AND DIMENSIONS
