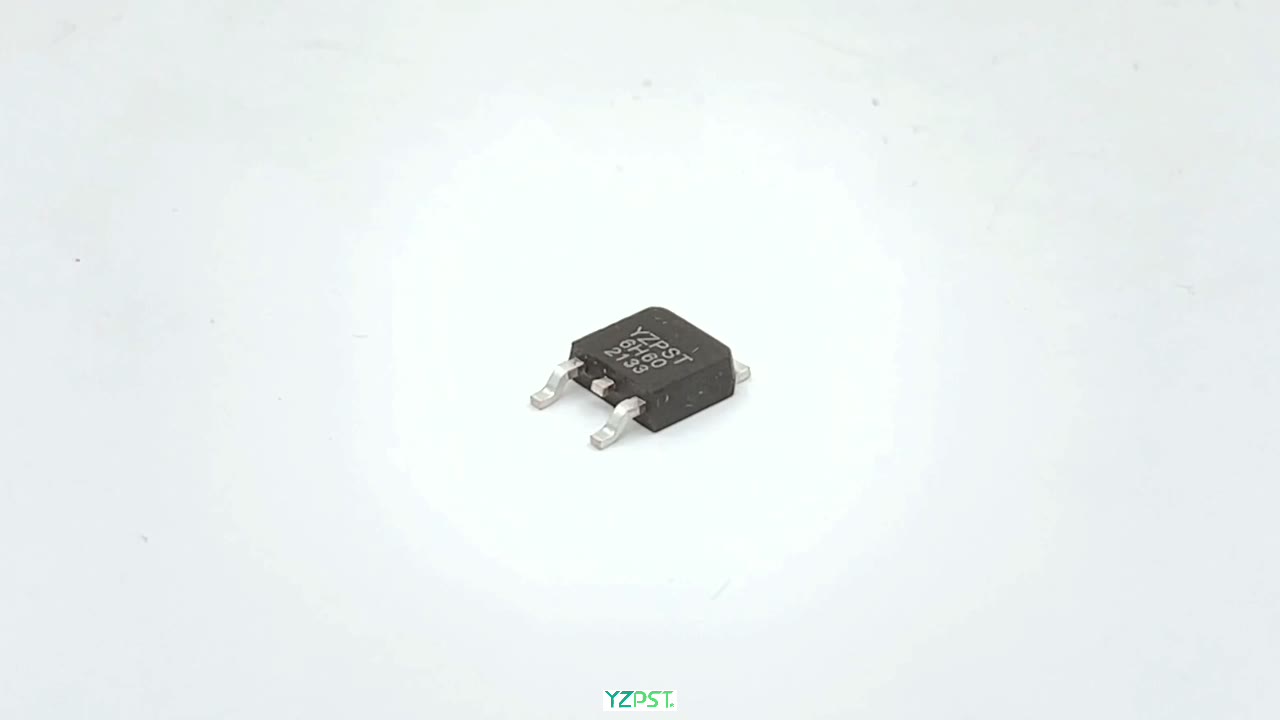

YZPST-6H60CX1G3
Trench Field-Stop Technology IGBT
YZPST-6H60CX1G3
Features
600V, 6A
VCE(sat)(typ.) =1.75V@VGE=15V, IC=6A
Low Qg
Maximum Junction Temperature 175℃
Pb-free Lead Plating; RoHS Compliant
Applications
Solar Converters
Uninterrupted Power Supply
Welding Converters
Mid to High Range Switching Frequency Converters
Key Performance and Package Parameters
|
Order codes |
VCE |
IC |
VCEsat, Tvj=25℃ |
Tvjmax |
Marking |
Package |
|
60H060CX1R3 |
650V |
6A |
1.75V |
175℃ |
6H60CX1R3 |
TO263-2L |
|
60H060CX1G3 |
650V |
6A |
1.75V |
175℃ |
6H60CX1G3 |

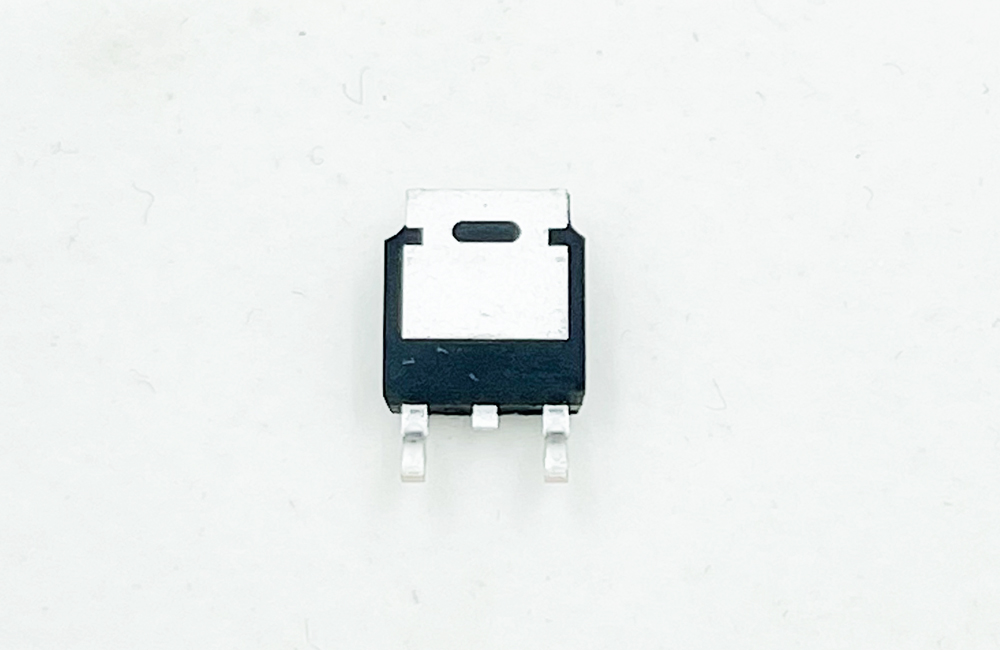

TO252-2L |
Absolute Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCES |
Collector-Emitter Voltage |
600 |
V |
|
VGES |
Gate-Emitter Voltage |
±20 |
V |
|
IC |
Continuous Collector Current (TC=25℃) |
12 |
A |
|
Continuous Collector Current (TC=100℃) |
6 |
A |
|
|
ICM |
Pulsed Collector Current (Note 1) |
18 |
A |
|
PD |
Maximum Power Dissipation (TC=25℃) |
89 |
W |
|
Maximum Power Dissipation (TC=100℃) |
44 |
W |
|
|
TJ |
Operating Junction Temperature Range |
-40 to 175 |
℃ |
|
TSTG |
Storage Temperature Range |
-55 to 150 |
℃ |
