Product Description

Features

600V,15A

VCE(sat)(typ.)=1.8V@VGE=15V,IC=15A

High speed switching

Higher system efficiency

Soft current turn-off waveforms

Square RBSOA

General Description

YZPST trench IGBTs offer lower losses and higher energy efficiency for application such as IH (induction heating),UPS, general inverter and other soft switching applications.

Absolute Maximum Ratings

Symbol	Parameter	Value	Units
VCES	Collector-Emitter Voltage	600	V
VGES	Gate-Emitter Voltage	+ 20	V
IC	Continuous Collector Current ( TC=25 ℃)	14	A
IC	Continuous Collector Current ( TC=100℃)	8	A
ICM	Pulsed Collector Current (Note 1)	45	A
IF	Diode Continuous Forward Current ( TC=100 ℃)	8	A
IFM	Diode Maximum Forward Current (Note 1)	45	A
tsc	Short Circuit Withstand Time	10	us
PD	Maximum Power Dissipation ( TC=25 ℃)	28	W
PD	Maximum Power Dissipation ( TC=100℃)	11	W
TJ	Operating Junction Temperature Range	-55 to +150	℃
TSTG	Storage Temperature Range	-55 to +150	℃

Thermal Characteristics

Symbol	Parameter	Max.	Units
Rth j-c	Thermal Resistance, Junction to case for IGBT	4.4	℃/ W
Rth j-c	Thermal Resistance, Junction to case for Diode	5.2	℃/ W
Rth j-a	Thermal Resistance, Junction to Ambient	65	℃/ W

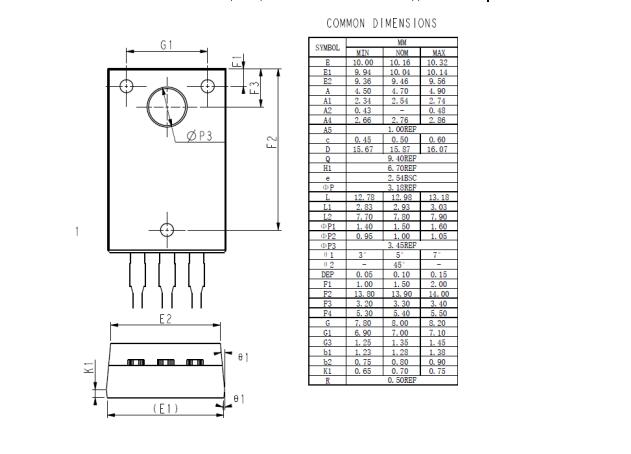

Mechanical Dimensions

For more information about YZPST-G15T60FS please download the PDF file above named " YZPST-G15T60FS "
