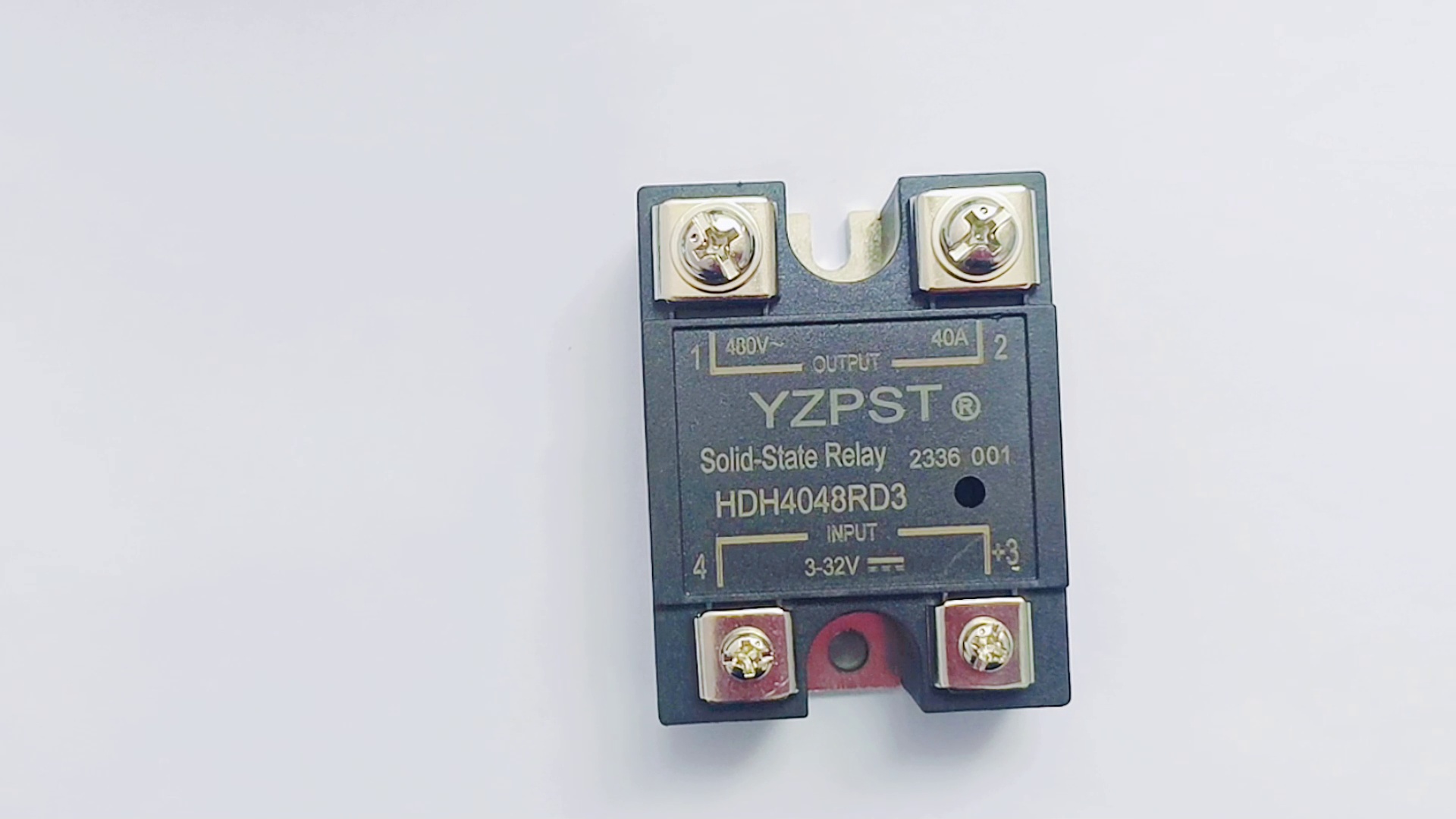

YZPST-HDH4048RD3
Solid State Relay
P/N:YZPST-HDH4048RD3
PRODUCT FEATURES
Rating Load Current 40A @48-480 VAC
SCR output for heavy industrial loads
Zero Voltage or instantaneous turn-on outputs
Low Forward Voltage
DC control
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product description

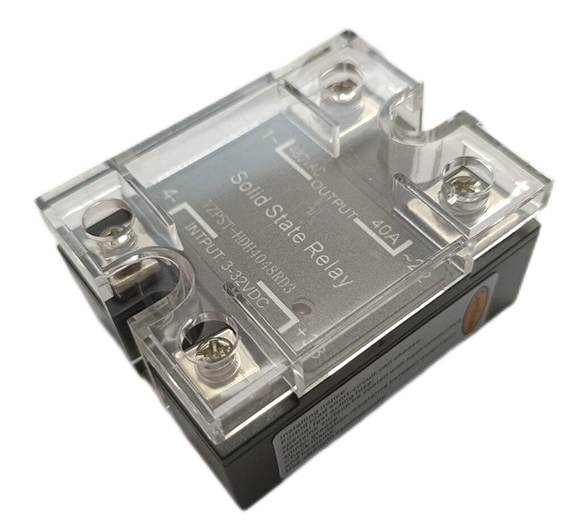

Solid State Relay
P/N:YZPST-HDH4048RD3
PRODUCT FEATURES
Rating Load Current 40A @48-480 VAC
SCR output for heavy industrial loads
Zero Voltage or instantaneous turn-on outputs
Low Forward Voltage
DC control
ELECTRICAL CHARACTERISTICS TC=25°C unless otherwise specified
|
Parameter |
Test Conditions |
Values |
Unit |
|
Control Voltage |
DC |
3-32 |
V |
|
Operating Voltage |
AC (47-63Hz) |
48-480 |
V |
|
Rated Load Current |
|
40 |
A |
|
Maximum Off-State Leakage Current |
@Rated Voltage |
2 |
mA |
|
Maximum On-State Voltage Drop |
@Rated Current |
1.5 |
V |
|
Maximum Off state time |
|
10 |
ms |
|
Ambient Temperature |
|
-30~+70 |
℃ |
