YZPST-TIP127
P/N:YZPST-TIP127 Darlington Transistors
DESCRIPTION:
The TIP127 is a silicon PNP power transistor in monolithic darlington configuration, mounted in TO-220B plastic package. It is intended for use in power linear and switching applications.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
description
P/N:YZPST-TIP127 Darlington Transistors
DESCRIPTION:
The TIP127 is a silicon PNP power transistor in monolithic darlington configuration, mounted in TO-220B plastic package. It is intended for use in power linear and switching applications.
MAIN FEATURES
|
Symbol |
Value |
Unit |
|
IC |
-5 |
A |
|
VCEO |
-100 |
V |
ABSOLUTE MAXIMUM RATINGS
|
Parameter |
Symbol |
Value |
Unit |
|
Storage temperature range |
Tstg |
-60 to 150 |
℃ |
|
Max. operating junction temperature |
Tj |
150 |
℃ |
|
Collector-emitter voltage (IB=0) |
VCEO |
-100 |
V |

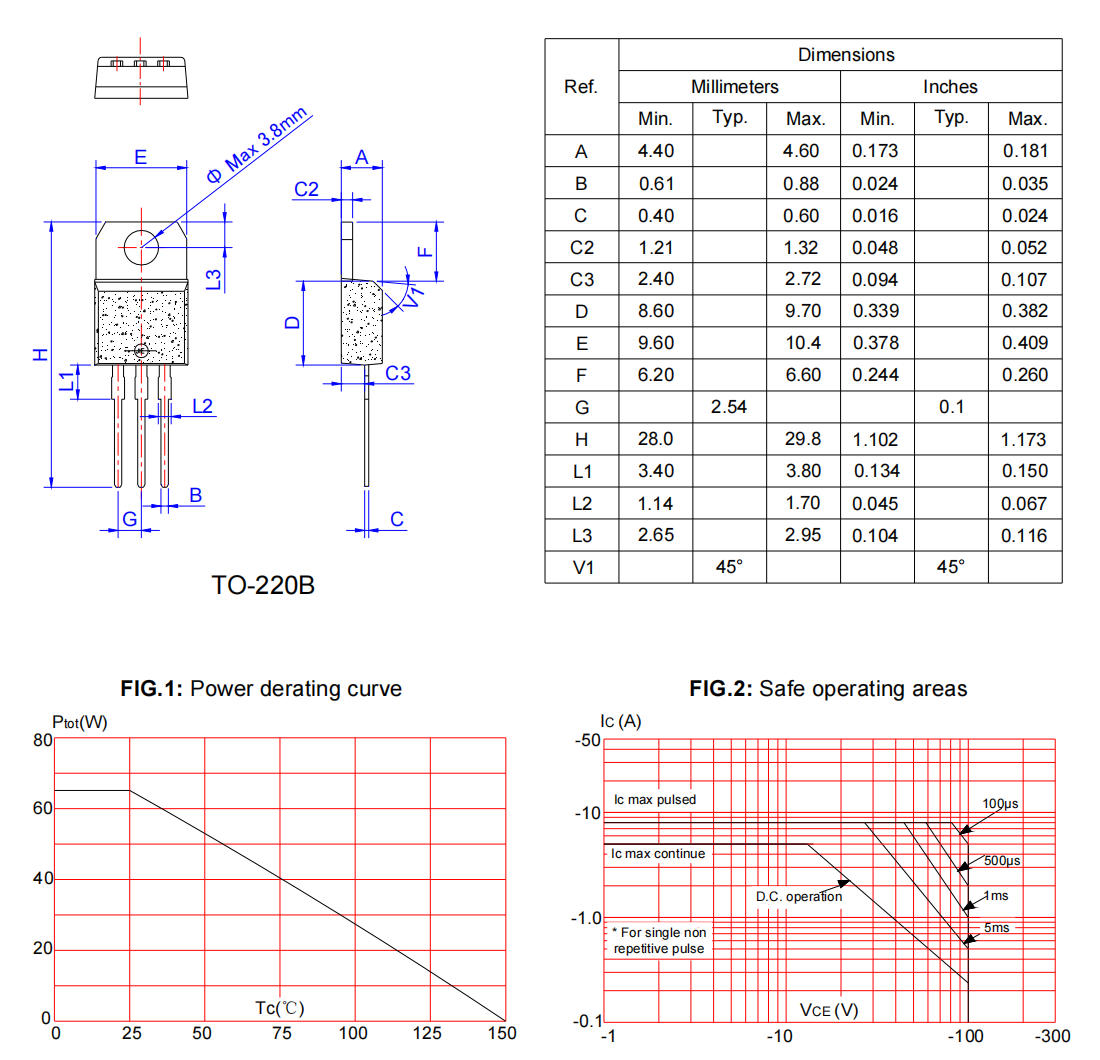

PACKAGE MECHANICAL DATA
