YZPST-TIP122
P/N:YZPST-TIP122 Darlington Transistors
DESCRIPTION:

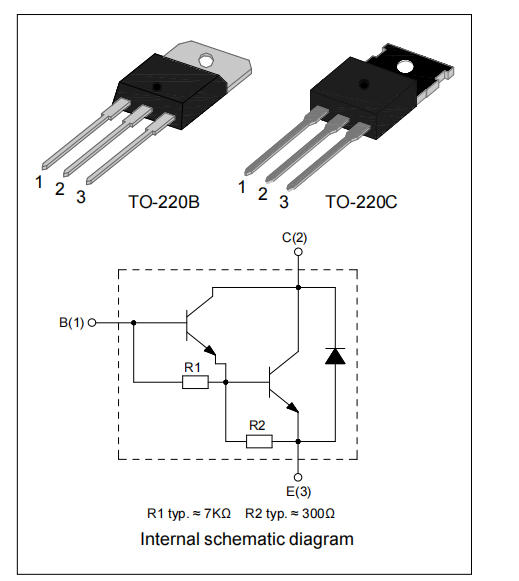

The TIP122 is a silicon NPN power transistor in monolithic darlington configuration, mounted in TO-220B and TO-220C plastic package. It is intended for use in power linear and switching applications.
P/N:YZPST-TIP122 Darlington Transistors
DESCRIPTION:
The TIP122 is a silicon NPN power transistor in monolithic darlington configuration, mounted in TO-220B and TO-220C plastic package. It is intended for use in power linear and switching applications.
MAIN FEATURES
|
Symbol |
Value |
Unit |
|
IC |
5 |
A |
|
VCEO |
100 |
V |
ABSOLUTE MAXIMUM RATINGS
|
Parameter |
Symbol |
Value |
Unit |
|
Storage temperature range |
Tstg |
-55 to 150 |
℃ |
|
Max. operating junction temperature |
Tj |
150 |
℃ |
|
Collector-emitter voltage (IB=0) |
VCEO |
100 |
V |
|
Collector-base voltage (IE=0) |
VCBO |
100 |
V |
|
Emitter-base voltage (IC=0) |
VEBO |
5 |
V |
|
Collector current |
IC |
5 |
A |
|
Collector peak current |
ICM |
8 |
A |
|
Base current |
IB |
120 |
mA |
|
Collector power dissipation |
PC |
2 |
W |
|
Collector power dissipation at Tcase = 25℃ |
PC |
65 |
W |

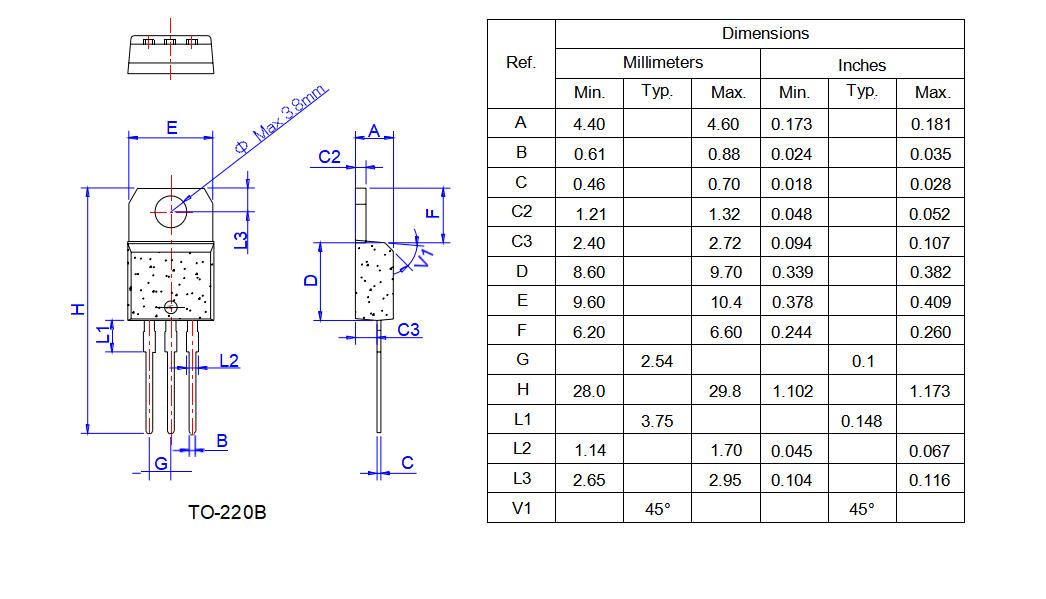

PACKAGE MECHANICAL DATA
