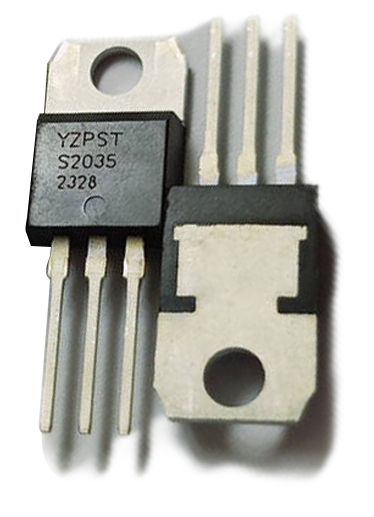

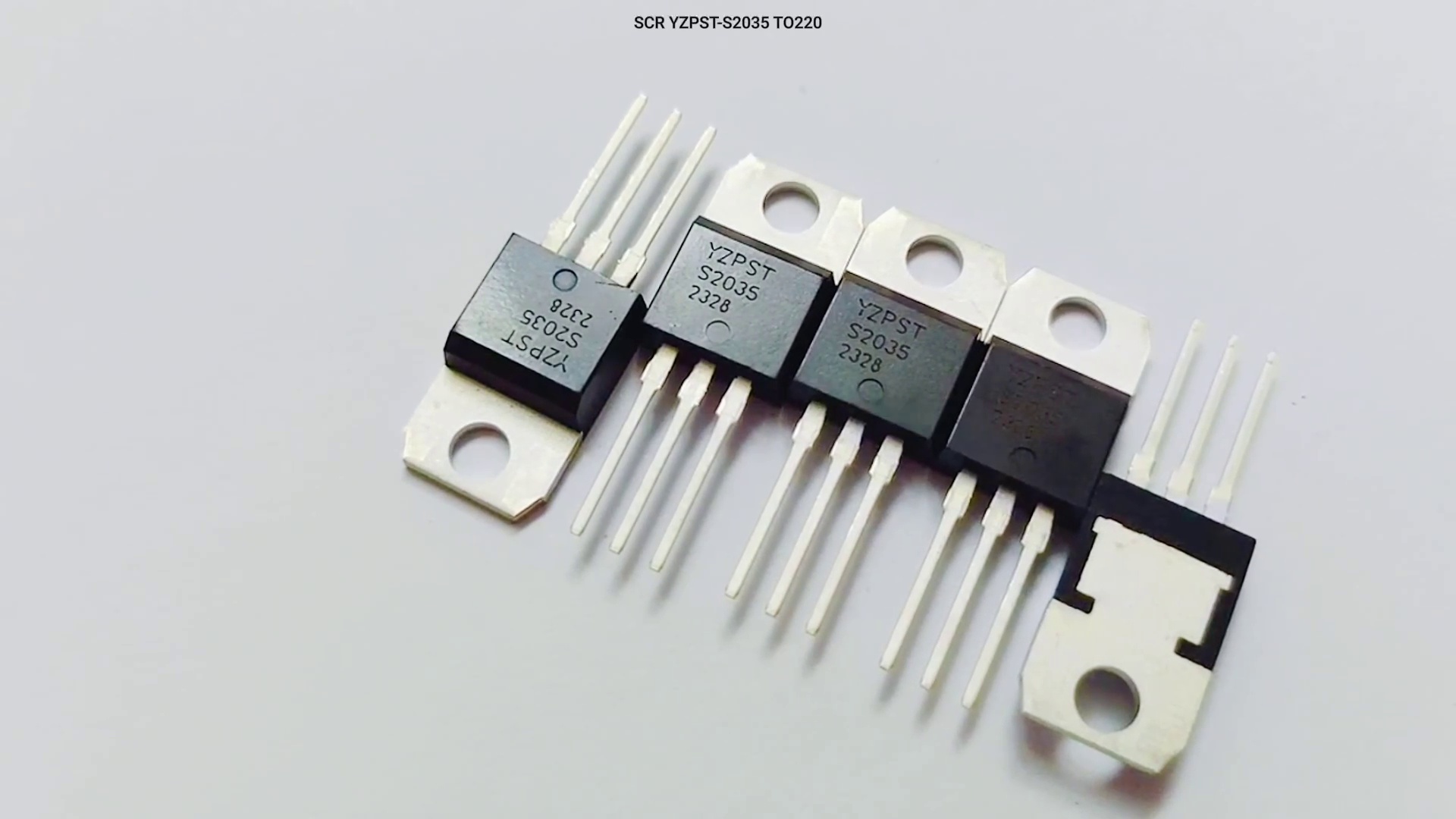

YZPST-S2035 20A SCR
YZPST-S2035
20A SCRs
DESCRIPTION:
Glasspassivated thyristors in a plastic envelope, The S2035 SCRs series is suitable to fit all modes of control, found in applications such as overvoltage crowbar protection, motor control circuits in power tools and kitchen aids, inrush current limiting circuits, capacitive discharge ignition ,Softstart AC motor control and voltage regulation circuits…
YZPST-S2035
20A SCRs
DESCRIPTION:
Glasspassivated thyristors in a plastic envelope, The S2035 SCRs series is suitable to fit all modes of control, found in applications such as overvoltage crowbar protection, motor control circuits in power tools and kitchen aids, inrush current limiting circuits, capacitive discharge ignition ,Softstart AC motor control and voltage regulation circuits…
MAIN FEATURES
|
Symbol |
Value |
Unit |
|
IT(RMS) |
31 |
A |
|
VDRM VRRM |
1200 |
V |
|
IGT |
35 |
mA |
ABSOLUTE MAXIMUM RATINGS
|
Parameter |
Symbol |
Value |
Unit |
|
Storage junction temperature range |
Tstg |
-40 ~150 |
℃ |
|
Operating junction temperature range |
Tj |
-40~125 |
℃ |
|
Repetitive peak off-state voltage (T =25℃) |
VDRM |
1200 |
V |
|
Repetitive peak reverse voltage (T =25℃) |
VRRM |
1200 |
V |
|
Non repetitive surge peak Off-state voltage |
VDSM |
VDRM +100 |
V |
|
Non repetitive peak reverse voltage |
VRSM |
VRRM +100 |
V |
|
RMS on-state current (T =100℃) |
IT(RMS) |
31 |
A |
|
Non repetitive surge peak on-state current
|
ITSM |
300 |
A |
|
Average on-state current (180° conduction angle) |
IT(AV) |
20 |
A |
|
I2t value for fusing (tp=10ms) |
I2t |
450 |
A2S |
|
Critical rate of rise of on-state current (I =2×IGT, tr ≤ 100 ns) |
dI/dt |
50 |
A/μS |
|
Peak gate current |
IGM |
4 |
A |
|
Average gate power dissipation |
PG(AV) |
1 |
W |
ELECTRICAL CHARACTERISTICS (T=25℃unless otherwise specified)
|
Symbol |
Test Condition |
|
Value |
Unit |
|
IGT |
V =12V R =140Ω |
MAX. |
35 |
mA |
|
VGT |
MAX. |
1.3 |
V |
|
|
VGD |
VD=VDRM Tj=125℃ R=1KΩ |
MIN. |
0.2 |
V |
|
IL |
IG=1.2IGT |
MAX. |
75 |
mA |
|
IH |
IT=50mA |
MAX. |
50 |
mA |
|
dV/dt |
VD=2/3VDRM Gate Open Tj=125℃ |
MIN. |
500 |
V/μs |
STATIC CHARACTERISTICS
|
Symbol |
Parameter |
Value(MAX.) |
Unit |
|
|
VTM |
ITM =40A tp=380μs |
Tj =25℃ |
1.65 |
V |
|
IDRM |
VD=VDRM VR=VRRM
|
Tj =25℃ |
20 |
μA |
|
IRRM |
Tj =125℃ |
4 |
mA |
|
Thermal Resistances
|
Symbol |
Parameter |
Value(MAX.) |
Unit |
|
Rth(j-a) |
junction to ambient(DC) |
60 |
℃/W |
|
Rth(j-c) |
Junction to case (DC) |
1.0 |

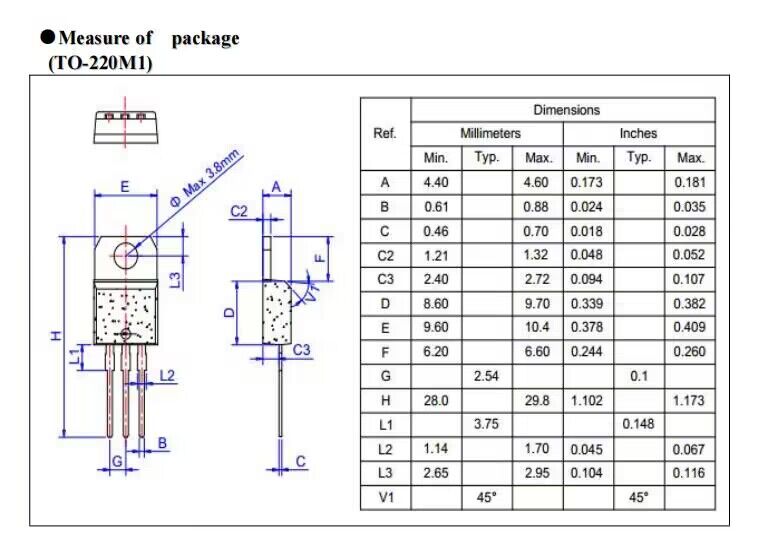

TO-220M1 Package Mechanical Data
