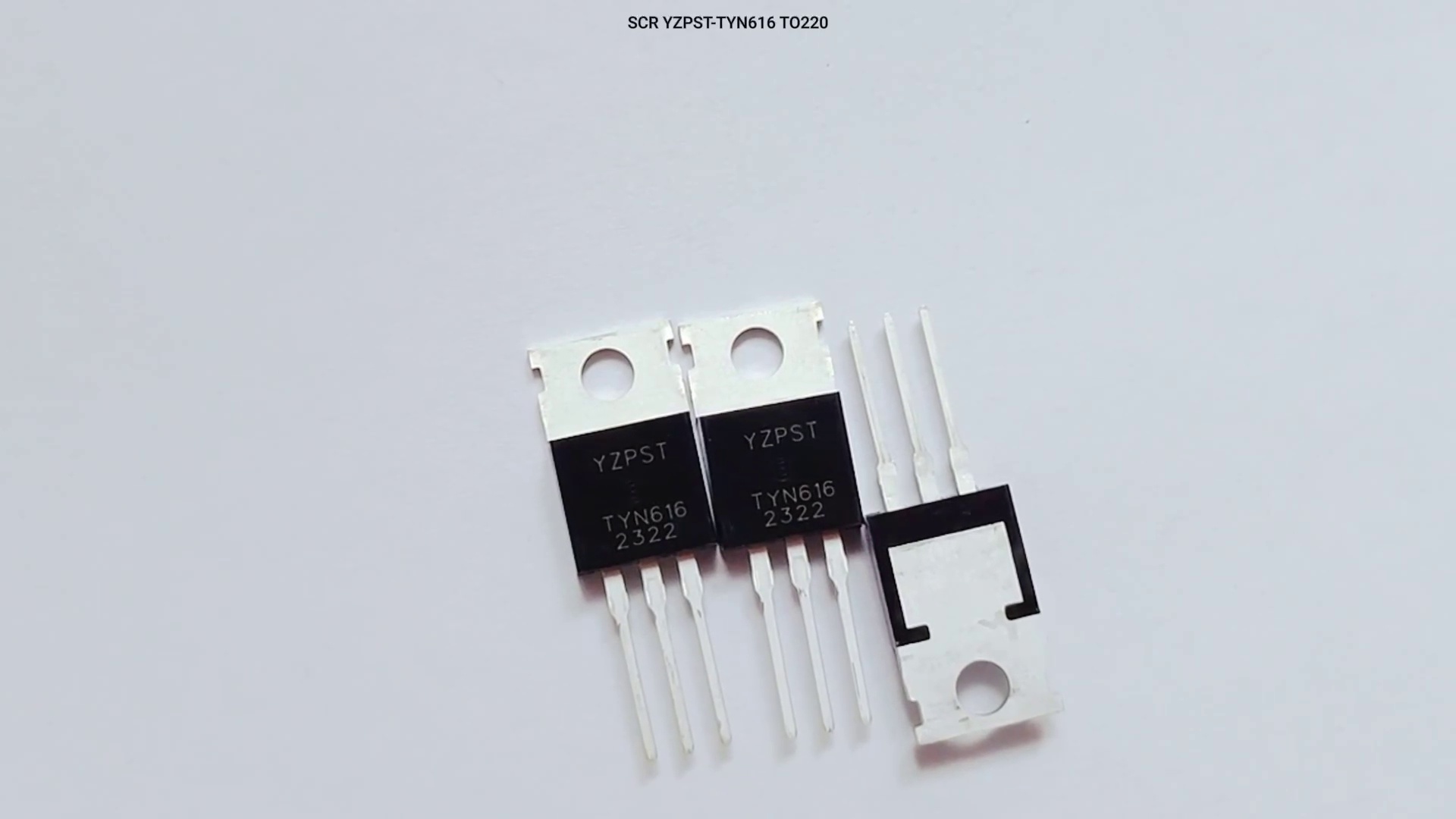

YZPST-TYN616
SCR P/N:YZPST-TYN616
Package
TO-220C
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
TO-220C 16A 600V TYN616 SCR
SCR P/N:YZPST-TYN616

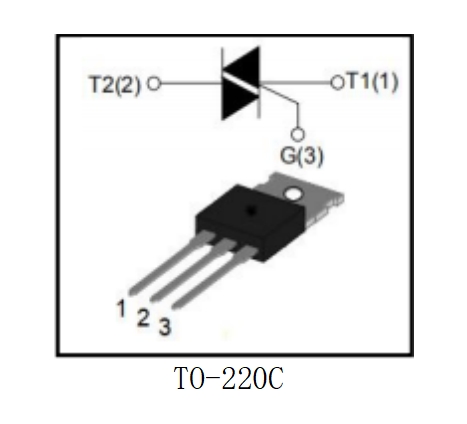

Package
TO-220C
Main Feature Tj=25℃
|
Symbol |
Value |
Unit |
|
IT (RMS) |
16 |
A |
|
VDRM / VRRM |
600 |
V |
|
IGT |
2 to15 |
mA |
Absolute ratings (Limiting Values)
|
Symbol |
Parameter |
Value |
Unit |
|
IT (RMS) |
RMS on-state current (180 °conduction angle) |
16 |
A |
|
IT(AV) |
AV on-state current (180 °conduction angle) |
10 |
A |
|
ITSM |
Non repetitive surge peak on-state Current (tp= 10ms) |
160 |
A |
|
I2t |
(tp= 10ms) |
100 |
A2S |
|
IGM |
Peak gate current(tp=20us) |
4 |
A |
|
PGM |
Peak gate power |
5 |
W |
|
PG(AV) |
Average gate power |
1 |
W |
|
Tstg Tj |
Storage temperature Operating junction temperature |
-40--+150 -40--+125 |
℃ |
Thermai Resistances
|
Symbol |
Parameter |
Value |
Unit |
|
Rth (j-c) |
Junction to case |
1. 1 |
K/W |
|
Rth (j-a) |
Junction to ambient |
55 |
K/W |
Electrical characteristics (Tj=25℃ unless otherwise stated)
| Symbol | Test Conditions | Value | Unit | |||
| Min | Type | Max | ||||
| IGT | VD=6V, RL= 100Ω | 2 | 5 | 15 | mA | |
| VGT | VD= 12V, RL= 100Ω | ----- | 0.7 | 0.8 | V | |
| VGD | VD=VDRM, RL=3.3KΩ Tj=110℃ | 0.2 | ----- | ----- | V | |
| IH | IT= 100mA Gate Open | ----- | 30 | 40 | mA | |
| dV/dt | VD=67%VDRM, GateOpen, Tj=125℃ | 400 | v/μs | |||
| ----- | ----- | |||||
| VTM | IT=24A,tp=380μs | ----- | ----- | 1.7 | V | |
| IDRM | VD=VDRM | Tj=25℃ | ----- | ----- | 10 | uA |
| Irrm | VR=VRRM | Tj=125℃ | ----- | ----- | 1 | mA |

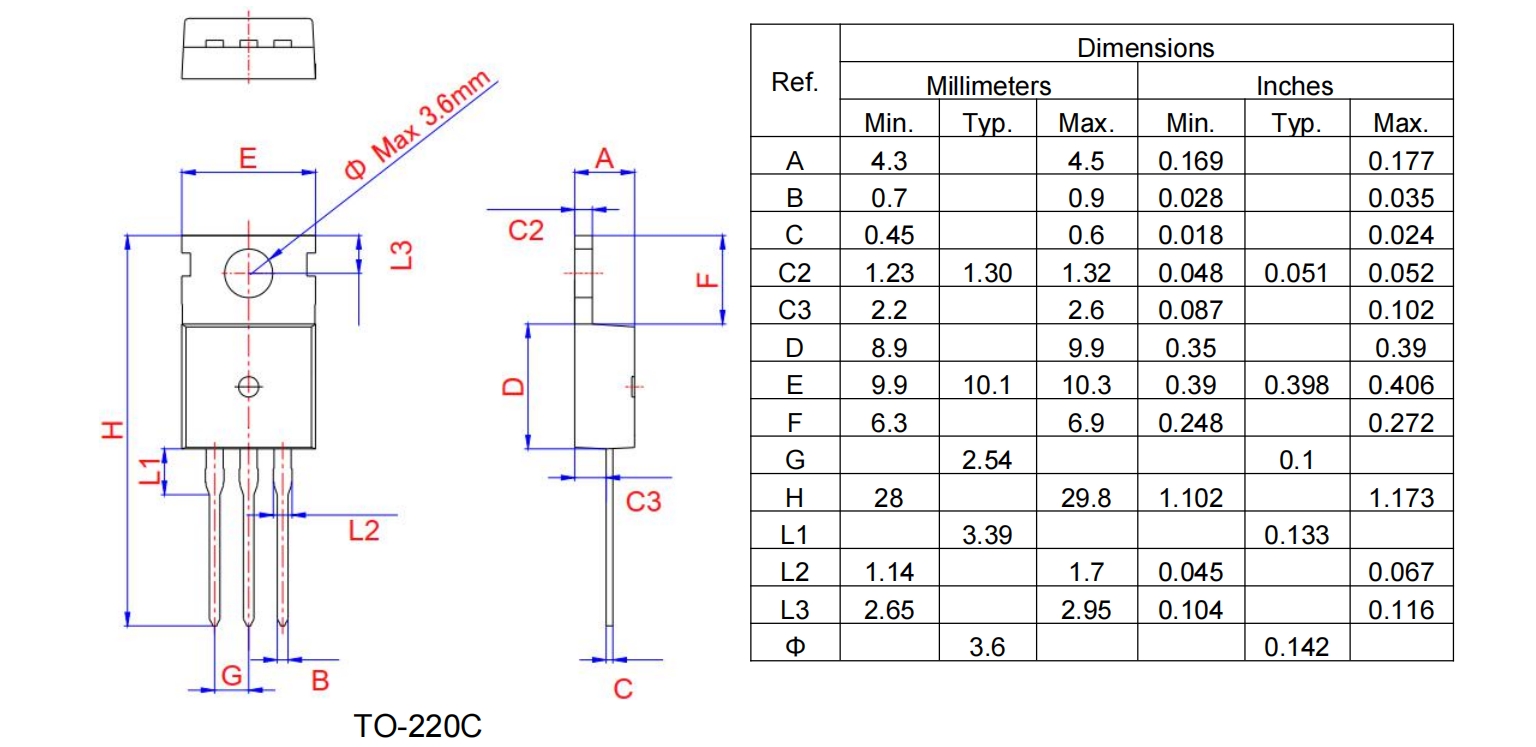

Measure of package
