YZPST-BE2247B1.0UF-1400VAC15A
YZPST-BE2247B1.0UF-1400VAC15A
metallized polypropylene film
Technical requirements:
1. Product specifications and related parameters:

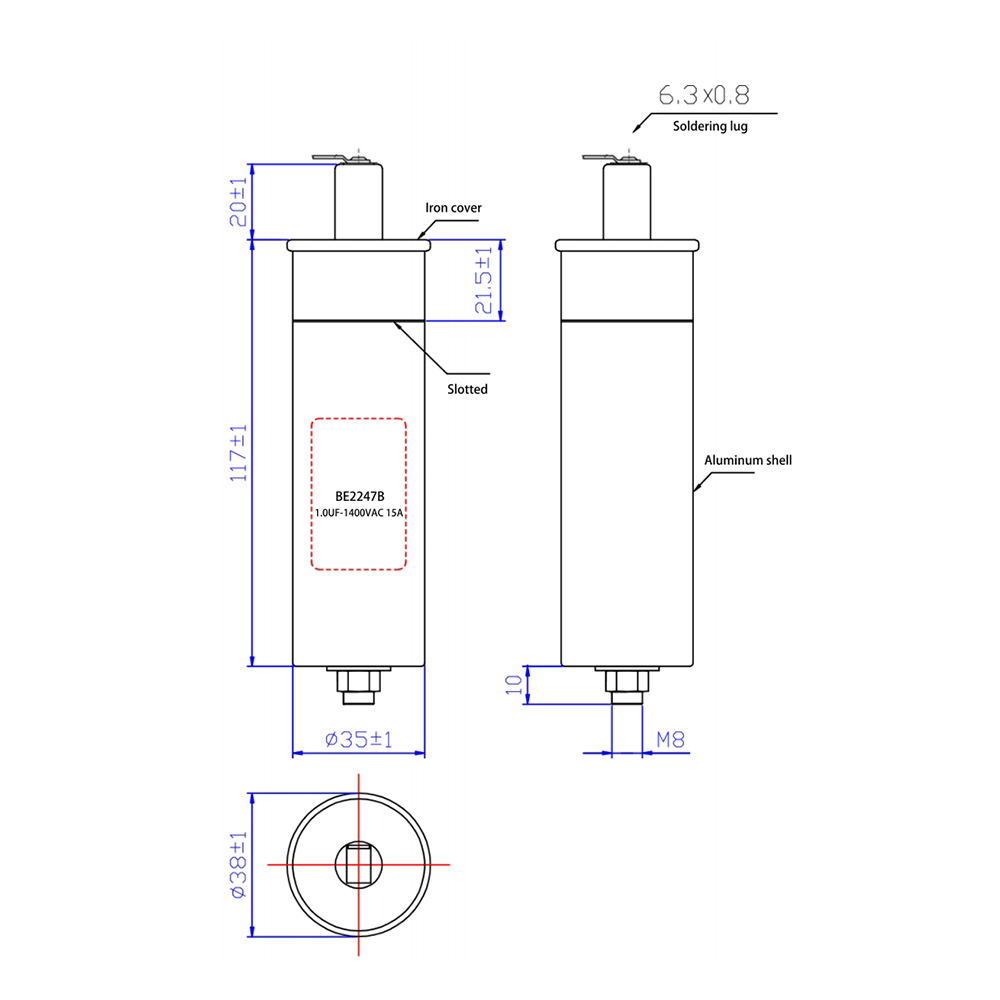

| Product | Rated capacity (CN) | Rated voltage (UN) | Shell size | Bottom bolt |
| specifications | ||||
| 1.0μF-1400VAC | 1.0μF | 1400VAC | φ35x117 | M8x10 |
2.Capacity deviation: -5%~+10% Rated frequency: 50Hz.
3.Medium: metallized polypropylene film
4.Potting material: environmentally friendly degradable soft resin (dry type)
5.Maximum overvoltage: 1.15U.
6.Maximum overcurrent: 1.8In.
7. Withstand voltage between two poles: 2.15Un 108, no breakdown or flashover.
8. Withstand voltage between poles and shells: 2UN+2000V or 3000v, whichever is higher, 108,no breakdown or flashover.
9.The capacitor is connected to a discharge resistor inside, and the residual voltage drops to 75Vor lower within 3 minutes after the product is powered off.
10.lmplementation standard: GB/T 12747.1/2-2017 & IEC 60831.1/2-2014.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product description
YZPST-BE2247B1.0UF-1400VAC15A
metallized polypropylene film
Technical requirements:
1. Product specifications and related parameters:
| Product | Rated capacity (CN) | Rated voltage (UN) | Shell size | Bottom bolt |
| specifications | ||||
| 1.0μF-1400VAC | 1.0μF | 1400VAC | φ35x117 | M8x10 |
2.Capacity deviation: -5%~+10% Rated frequency: 50Hz.
3.Medium: metallized polypropylene film
4.Potting material: environmentally friendly degradable soft resin (dry type)
5.Maximum overvoltage: 1.15U.
6.Maximum overcurrent: 1.8In.
7. Withstand voltage between two poles: 2.15Un 108, no breakdown or flashover.
8. Withstand voltage between poles and shells: 2UN+2000V or 3000v, whichever is higher, 108,no breakdown or flashover.
9.The capacitor is connected to a discharge resistor inside, and the residual voltage drops to 75Vor lower within 3 minutes after the product is powered off.
10.lmplementation standard: GB/T 12747.1/2-2017 & IEC 60831.1/2-2014.
