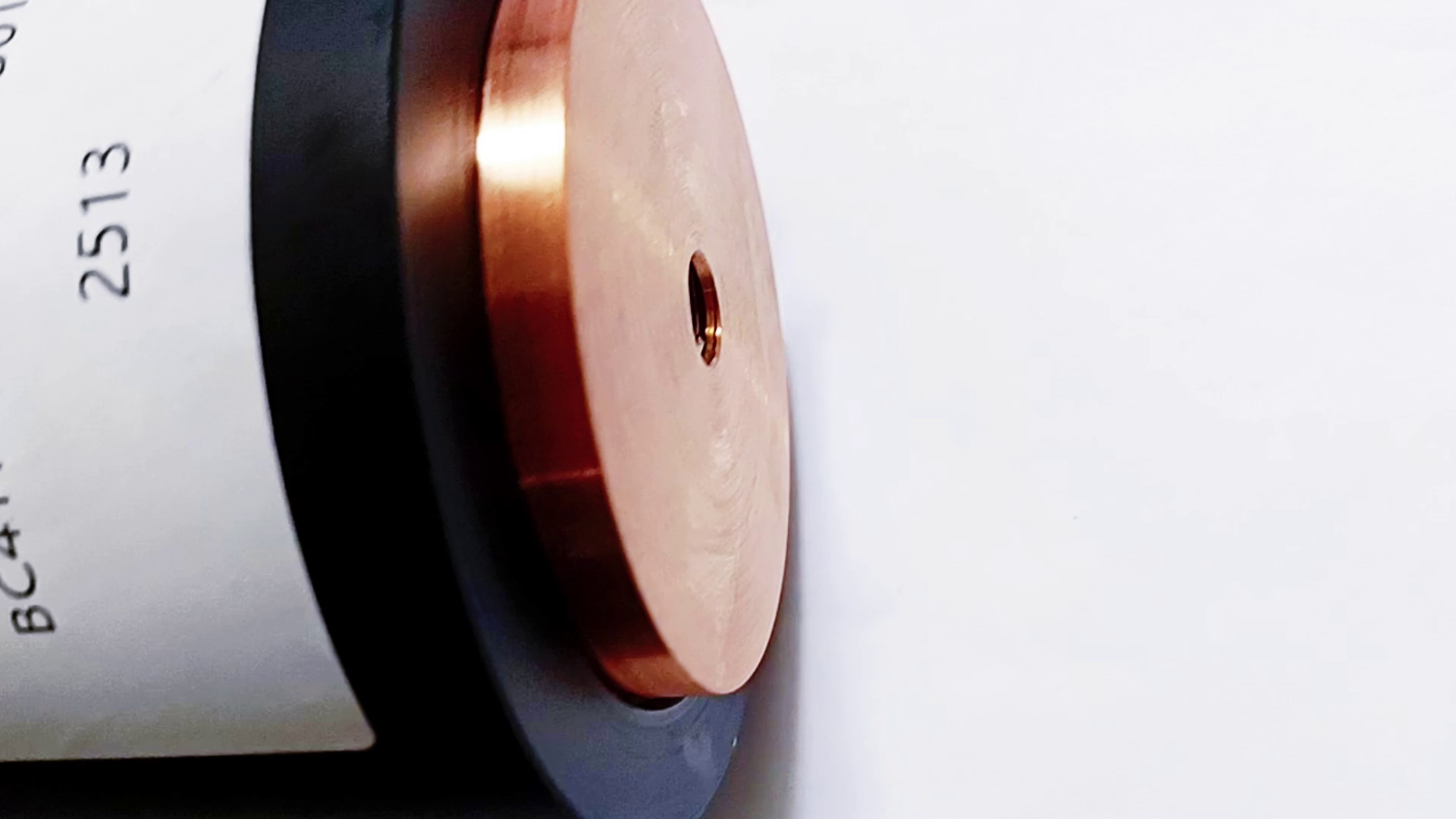

YZPST-BC41701635KBE1501-01
Type：BC41 Resonant Capacitor
Description: P/N: YZPST-BC41-BE1-500KVAR-700VAC-6.3UF
Code: BC41701635KBE1501-01
Characteristics
Conduction water-cooled
Polypropylene dielectric
Low dissipation factor(tgδ),low ESL and low ESR
High voltage, high frequency and high dv/dt, Excellent heat dissipation
It can be bear large current
Application
Widely used in high power and high frequency resonant devices
Technical data
|
Reference standards |
GB/T 3984-2004 IEC 60110.1 |
|
Operating temperature range |
-40℃~+85℃ |
|
Capacitance range |
6.3μF |
|
Rated capacitance |
500 kVar |
|
Rated voltage |
700VAC |
|
Tolerance |
±10% |
|
Test voltage between terminals |
1.5UNAC 10s 3.0UNDC 10s at 25℃±5℃ |
|
Dissipation factor |
tgδ≤5×10-4 at 25℃±5℃ , 1kHz |
|
Insulation resistance |
R·C≥5000s，at 100VDC，25℃±5℃ , 60s |
|
Life expectancy |
100000hrs ( Un θhotspot ≤ 70℃) |

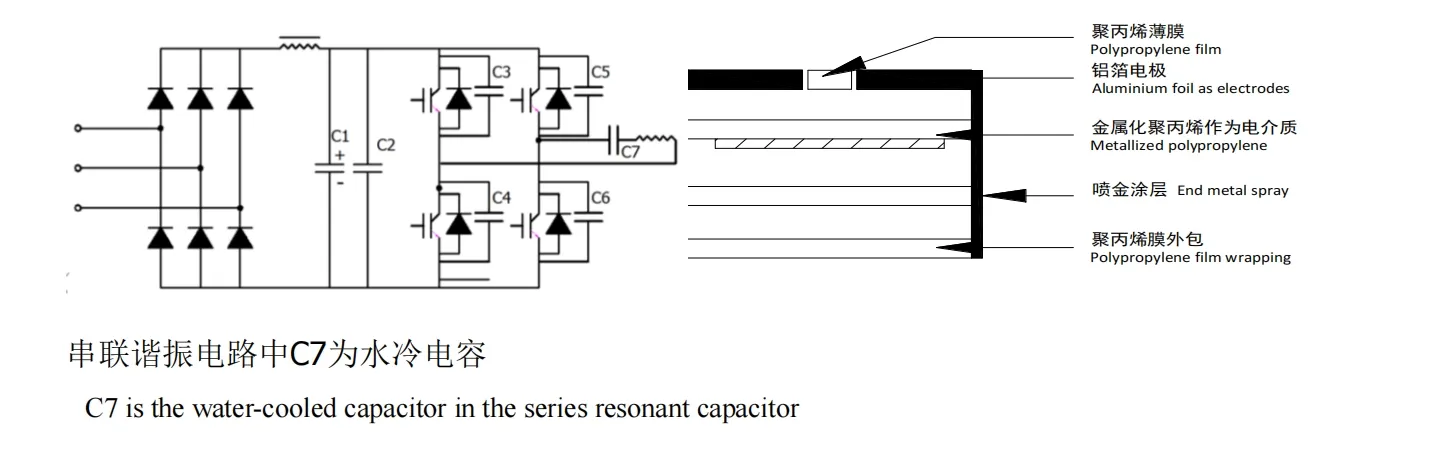

Typical circuit and Construction diagram

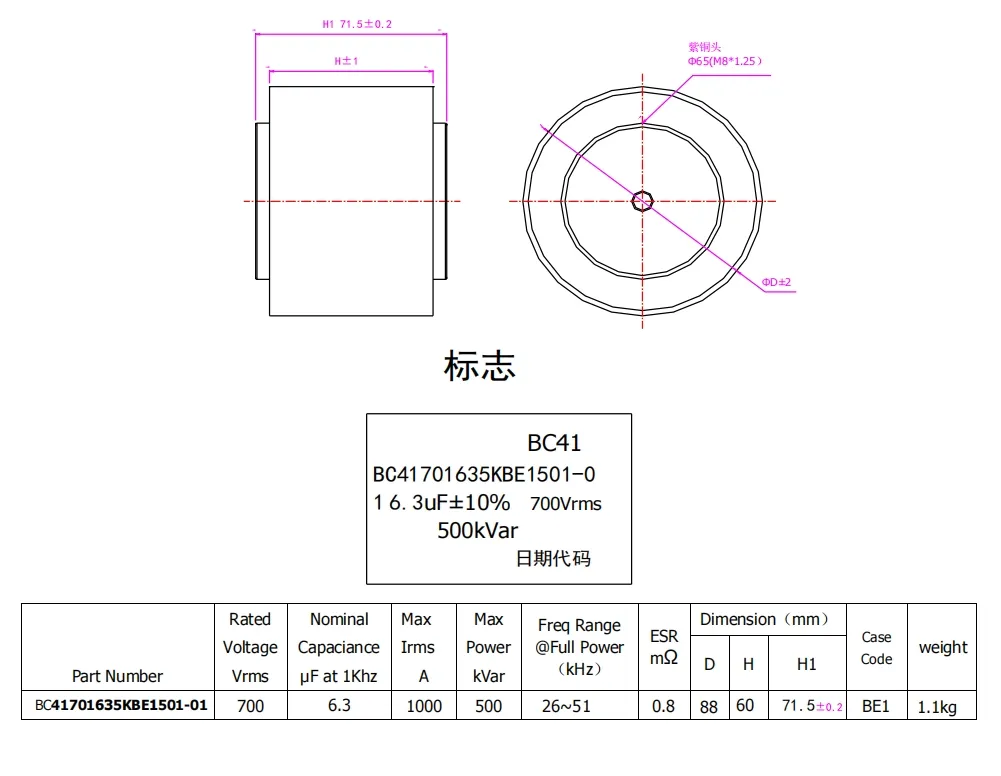

Capacitor Drawing and Terminal Style
