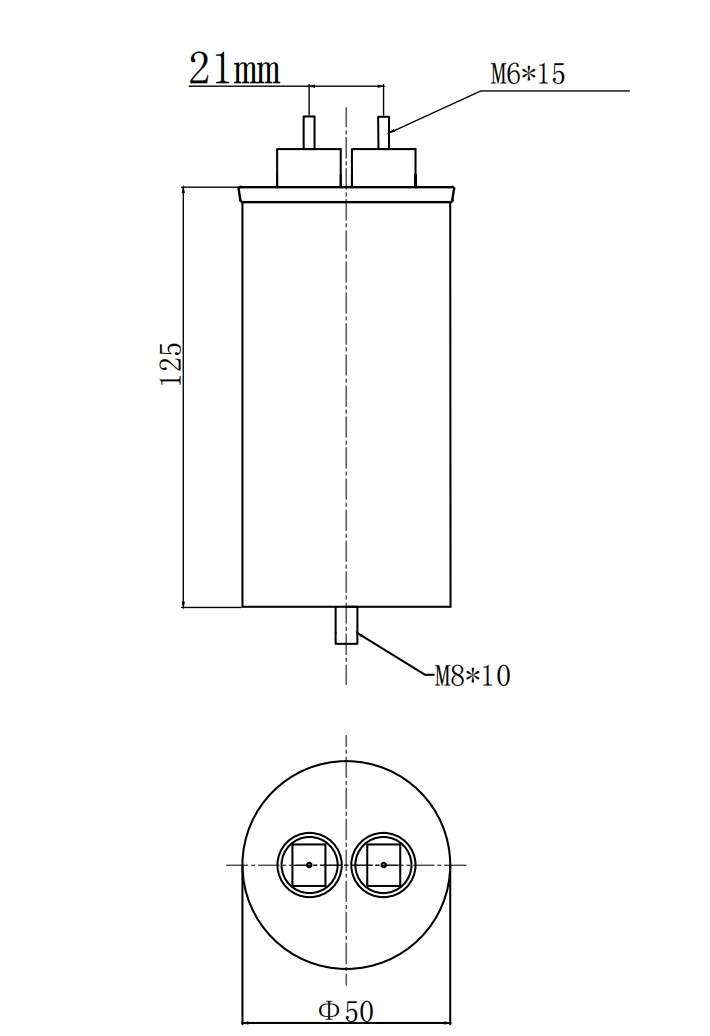

P/N:YZPST-CBB66-690VAC-25 μF

Features:

The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced.

Applications:

Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for family air conditioners and high power illuminators for the sake of power factor compensation.

Technical Specifications:

Standard:IEC 60252-1:2001 Environmental protection:ROSH Technical features :

Climate type:40/70/21 or 40/85 /21

Class of operation:P2(S2)/P1(S1)

Voltage range:690VAC

Test voltage terminal to terminal :1400VAC for 2 seconds

Test voltage terminal to case :4000VAC or 3000VAC-50Hz for 60seconds

Capacitance tolerance :± 5%

I.R:≥3000S (MΩ.μF)

Dielectric dissipation factor :tgδ≤0.002 (50Hz~100Hz) Application requirements :

Altitude:≤2000m
