YZPST-EF25 70.0mH Transformer
TRANSFORMER
P/N:YZPST-EF25 70.0mH

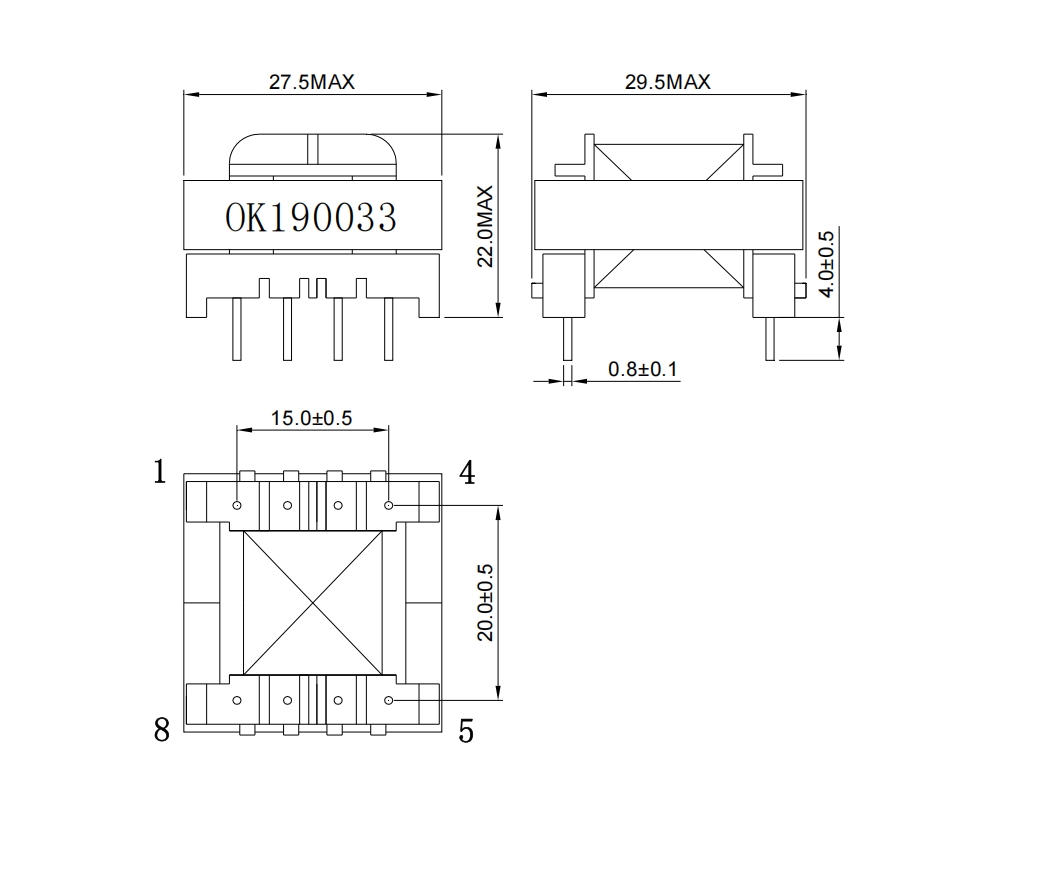

OUTLINE DIMENSION: (UNIT: mm)
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
DESCRIPTION
TRANSFORMER
P/N:YZPST-EF25 70.0mH
OUTLINE DIMENSION: (UNIT: mm)
SCHEMATIC:
WINDING:
|
WDG |
TERMINAL |
WIRESIZE |
TURNS |
TAPE |
REMARK |
|
N1 |
1-8 |
QA-1-0.20/155℃ |
550 |
1 |
|
|
N2 |
7-2 |
QA-1-0.45/155℃ |
6 |
1 |
|
|
N3 |
6-3 |
QA-1-0.45/155℃ |
6 |
|
|
|
N4 |
4-5 |
QA-1-0.45/155℃ |
4 |
2 |
|
|
Note: Pin 1-4 of N1 winding faces the machine; N2/N3/N4 windings with pin 5-8 facing the machine |
|||||
TECHNICAL PARAMETER
|
NO. |
ITEM |
MEASURED POINT |
TECHNICALDATA |
TEST CONDITION |
|
1 |
INDUCTANCE |
8-1 |
70.0mH±10% |
10KHZ 0.3V LCZ1062 |
|
|
|
|
|
|
|
|
|
|
|
CORE DEMENSION:(UNIT:mm) QP4A
