YZPST-2SA940

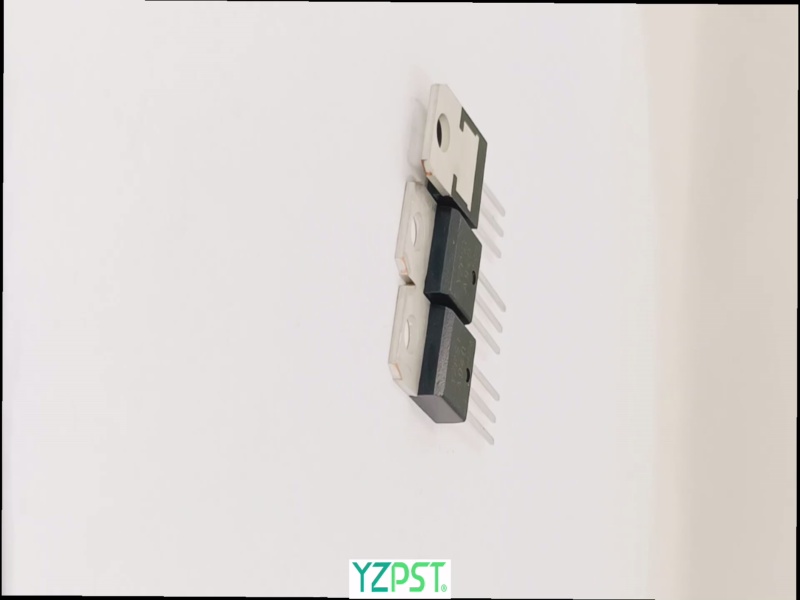

PNP Type Transistor 2SA940
DESRCRIPTION:The 2SA940 is a PNP type transistor, used as a power switch tube for electronic ballasts and electronic energy-saving lamps. It has the characteristics of low switching loss, high reliability, good high temperature characteristics, suitable switching speed, high breakdown voltage, low reverse leakage, etc.
ABSOLUTE MAX I MUM RATINGS
|
Symbol |
Parameter |
Value |
Unit |
|
VCBO |
Collector-Base Voltage |
-150 |
V |
|
VCEO |
Collector-Emitter Voltage |
-150 |
V |
|
VEBO |
Emitter-Base Voltage |
-5 |
V |
|
IC |
Continuous Collector Current |
-1.5 |
A |
|
PTOT |
Total dissipation at Tcase=25 ℃ |
25 |
W |
|
Tj |
Junction Temperature |
150 |
℃ |
|
Tstg |
Stora-1.5ge Temperature Range |
-55〜150 |
℃ |
ELECTRICAL CHARACTERISTICS (TC = 25°C, unless otherwise specified)
|
Symbol |
Parameter |
Test Condition |
Value |
Unit |
||
|
Min |
Type |
Max |
||||
|
V(BR)CBO |
Collector-Base Breakdown Voltage |
IC=-1mA |
-150 |
|
|
V |
|
V(BR)CEO |
Collector-Emitter Breakdown Voltage |
IC=-1mA |
-150 |
|
|
V |
|
V(BR)EBO |
Emitter-Base Breakdown Voltage |
IE=-1mA |
- 5 |
|
|
V |
|
ICBO |
Collector Cutoff Current |
VCB=-150V, IE=0 |
|
|
-5 |
μA |
|
ICEO |
Collector Cutoff Current |
VCE=-150V, IC=0 |
|
|
-5 |
μA |
|
IEBO |
Emitter Cutoff Current |
VEB=-5V, IC=0 |
|
|
-5 |
μA |
|
hFE |
DC Current Gain |
VCE=-10V, IC=-0.5A |
40 |
|
140 |
|
|
VCE(sat) |
Collector-Base Breakdown Voltage |
IC=-0.5A, IB=-50mA |
|
|
-0.85 |
V |
|
VBE(sat) |
Base-Emitter Saturation Voltage |
IC=-0.5A, IB=-50mA |
|
|
-1.5 |
V |
|
a: tp≤300μs,δ≤2% |
||||||
PACKAGE MECHANICAL DATA
