YZPST-2SC2073

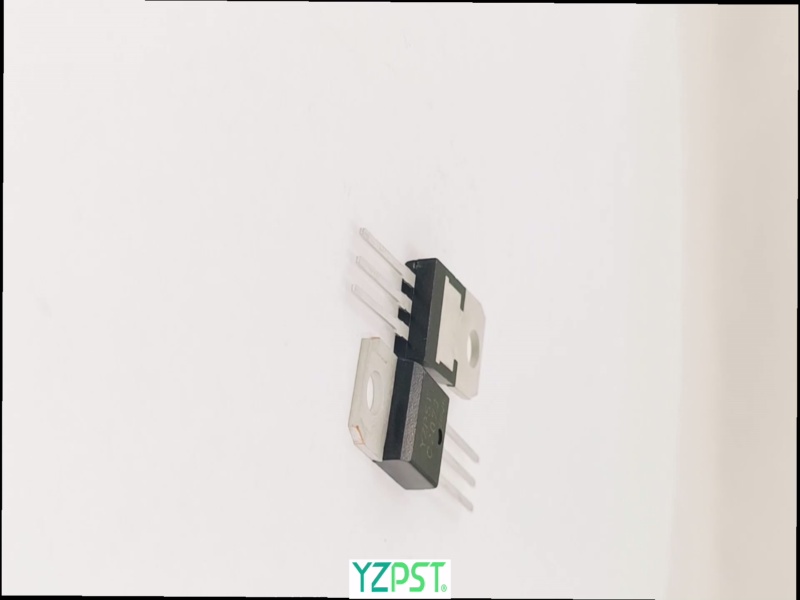

NPN Type Transistor 2SC2073
DESRCRIPTION:
The 2SC2073 is a NPN type transistor, used as a power switch tube for electronic ballasts and electronic energy-saving lamps. It has the characteristics of low switching loss, high reliability, good high temperature characteristics, suitable switching speed, low reverse leakage, etc.
ABSOLUTE MAX I MUM RATINGS
|
Symbol |
Parameter |
Value |
Unit |
|
VCBO |
Collector-Base Voltage |
150 |
V |
|
VCEO |
Collector-Emitter Voltage |
150 |
V |
|
VEBO |
Emitter-Base Voltage |
5 |
V |
|
IC |
Continuous Collector Current |
1.5 |
A |
|
PTOT |
Total dissipation at Tcase=25 ℃ |
75 |
W |
|
Tj |
Junction Temperature |
150 |
℃ |
|
Tstg |
Storage Temperature Range |
-55-150 |
℃ |
ELECTRICAL CHARACTERISTICS (TC = 25°C, unless otherwise specified)
|
Symbol |
Parameter |
Test Condition |
Value |
Unit |
||
|
Min |
Type |
Max |
||||
|
V(BR)CBO |
Collector-Base Breakdown Voltage |
IC=1mA |
150 |
|
|
V |
|
V(BR)CEO |
Collector-Emitter Breakdown Voltage |
IC=0.1mA |
150 |
|
|
V |
|
V(BR)EBO |
Emitter-Base Breakdown Voltage |
IE=1mA |
-5 |
|
|
V |
|
ICBO |
Collector Cutoff Current |
VCB=150V, IE=0 |
|
|
5 |
μA |
|
ICEO |
Collector Cutoff Current |
VCE=150V, IC=0 |
|
|
5 |
μA |
|
IEBO |
Emitter Cutoff Current |
VEB=5V, IC=0 |
|
|
5 |
μA |
|
hFE |
DC Current Gain |
VCE=10V, IC=0.5A |
40 |
|
140 |
|
|
VCE(sat) |
Collector-Base Breakdown Voltage |
IC=0.5A, IB=50mA |
|
|
0.85 |
V |
|
VBE(sat) |
Base-Emitter Saturation Voltage |
IC=0.5A, IB=50mA |
|
|
1.5 |
V |
|
a: tp≤300μs,δ≤2% |
||||||
PACKAGE MECHANICAL DATA
