YZPST-RD100N26C
100V 30mΩ N-Ch Power MOSFET
YZPST-RD100N26C
Features
Low RDS(ON)
Low Gate Charge
100% UIS Tested, 100% Rg Tested
Pb-free Lead Plating
Halogen-free and RoHS-compliant
Applications
Power Managerment in Telecom., Industrial Automation, CE
Current Switching in DC/DC & AC/DC (SR) Sub-systems
Motor Drivin in Power Tool, E-vehicle, Robotics
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
DESCRIPTION
100V 30mΩ N-Ch Power MOSFET
YZPST-RD100N26C
Features
Low RDS(ON)
Low Gate Charge
100% UIS Tested, 100% Rg Tested
Pb-free Lead Plating
Halogen-free and RoHS-compliant
Applications
Power Managerment in Telecom., Industrial Automation, CE
Current Switching in DC/DC & AC/DC (SR) Sub-systems
Motor Drivin in Power Tool, E-vehicle, Robotics
Product Summary
|
Parameter |
Typ. |
Unit |
|
VDS |
100 |
V |
|
VGS(th) |
1.9 |
V |
|
ID (@ VGS = 10V) (1) |
26 |
A |
|
RDS(ON) (@ VGS = 10V) |
30 |
mΩ |
Absolute Maximum Ratings (@ TA = 25°C unless otherwise specified)
|
Parameter |
Symbol |
Value |
Unit |
|
|
Drain-to-Source Voltage |
VDS |
100 |
V |
|
|
Gate-to-Source Voltage |
VGS |
±20 |
V |
|
|
Continuous Drain Current (1) |
TC = 25°C |
ID |
26 |
A |
|
TC = 100°C |
16 |
|||
|
Pulsed Drain Current (2) |
IDM |
70 |
A |
|
|
Avalanche Current (3) |
IAS |
14 |
A |
|
|
Avalanche Energy (3) |
EAS |
10 |
mJ |
|
|
Power Dissipation (4) |
TC = 25°C |
PD |
50 |
W |
|
TC = 100°C |
20 |
|||
|
Junction & Storage Temperature Range |
TJ , TSTG |
-55 to 150 |
°C |
|

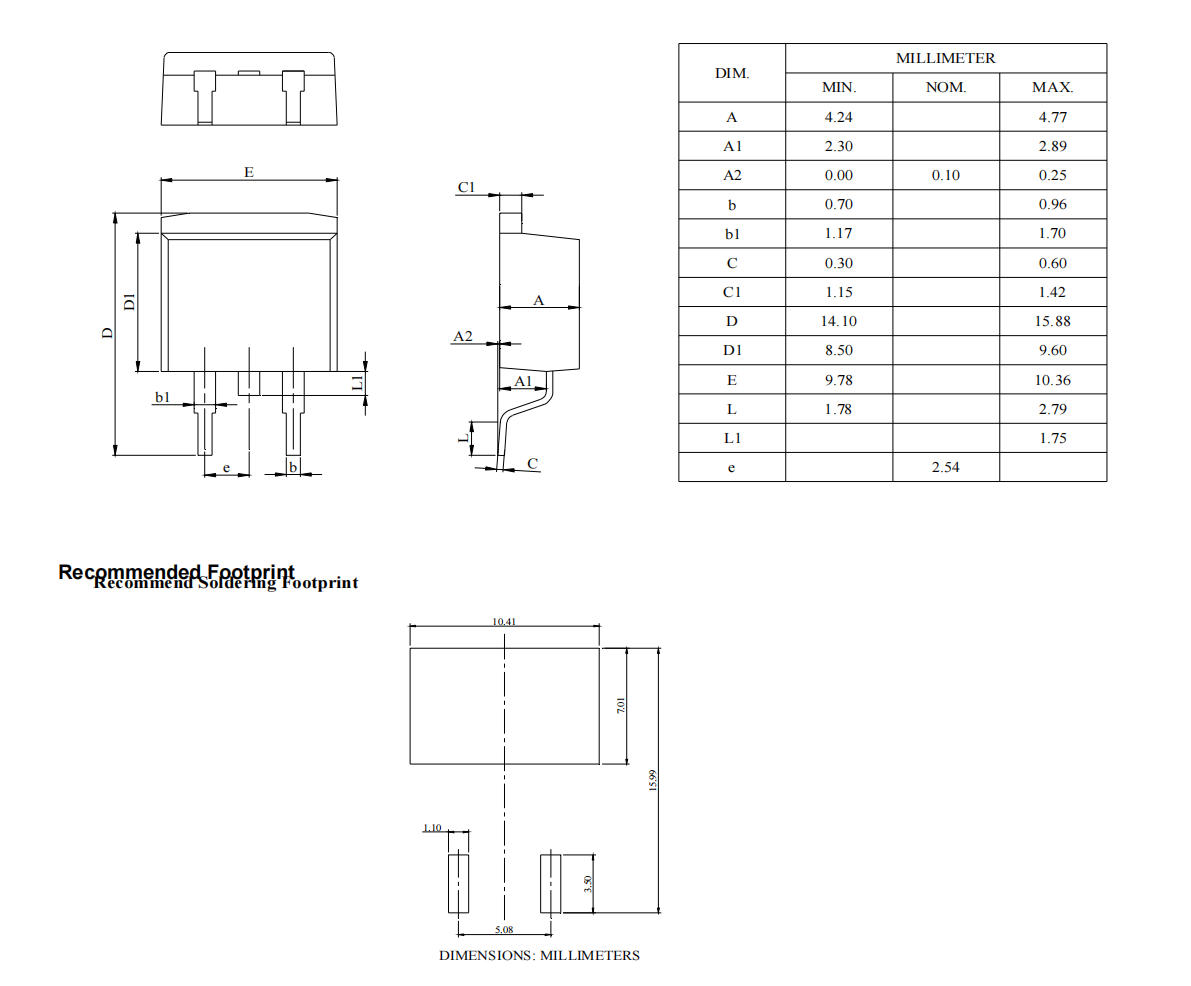

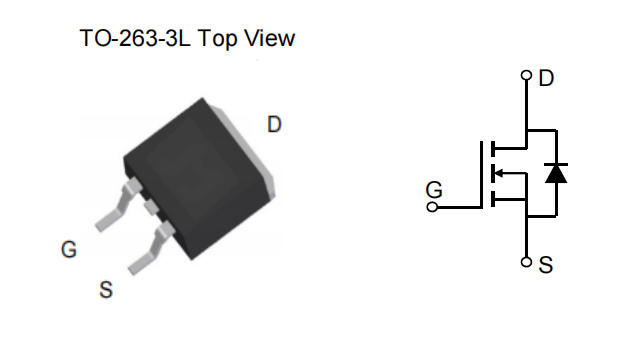

TO-263-3L Package Information
